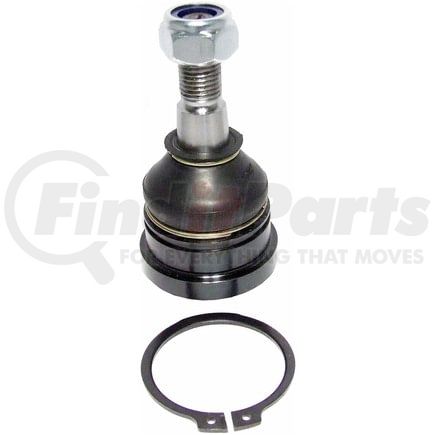

DELPHI TC1680 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1680 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.949 IN |
| Maximum Outside Diameter | 49.50 MM |
| Color | Gray |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 49.5 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.661 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.043 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.626 IN |
| Stud Tapered End 2 Diameter | 15.9 MM |
| Stud Tapered End 1 Diameter | 0.705 IN |
| Stud Tapered End 1 Diameter | 17.9 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 93.00 MM |
| Length | 3.660 IN |
| Stud Thread Diameter | 0.55 IN |
| Height | 92.99 MM |
| Stud Thread Length | 26.49 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604278161 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1680 Cross References
DELPHI TC1680 Fits Vehicles
- Toyota Supra (1986)
- Toyota Cressida (1978-1992)
- Toyota Celica (1982-1986)
