(888) 312-8812 Login SignupDELPHI TC1662 Ball Joint
MSRP: $46.18
$3049
Save $15.69
Limited availability at this price!
In Stock
Get as soon as Monday, Oct 5
DELPHI TC1662 Part Description
Manufacturer
Product Description

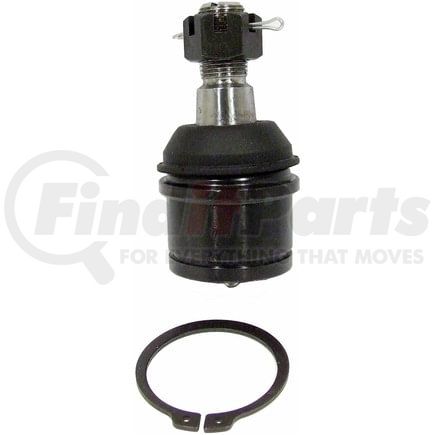

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1662 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.205 IN |
| Maximum Outside Diameter | 56.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.75 IN |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 56 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 4.331 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 1.26 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.881 IN |
| Stud Tapered End 2 Diameter | 22.38 MM |
| Stud Tapered End 1 Diameter | 1.004 IN |
| Stud Tapered End 1 Diameter | 25.5 MM |
| Stud Threads Per Inch | 16 |
| Length | 110.00 MM |
| Length | 4.330 IN |
| Stud Thread Diameter | 19.05 MM |
| Height | 110.01 MM |
| Stud Thread Length | 32 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604276839 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1662 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | B80027, B80027XL |
| Ford | 8C3Z 3050-D, E7TZ-3050B, F6TZ 3050-AB, F6TZ 3050-FB, MCSOE90 |
| MAS Industries | B80027, B80027XL, B8431, B8431PR, B8433 |
| MEVOTECH | MK80027, TXK80027 |
| MOOG Chassis Products | K80027, K8433, K8431T |
| Mevotech | MK8433 |
| N/A | 5C3Z3050D, 5C3Z 3050-DA, MK80027, GK8433, GK80027, TXK80027, B80027RD, 610.65005 |
| TRW | JBJ7049, JBJ885 |
DELPHI TC1662 Fits Vehicles
- Ford F-250 HD (1997)
- Ford F-350 Super Duty (1999-2022)
- Ford F-350 (1987-1997)
- Ford F-250 Super Duty (1999-2022)
- Ford F-250 (1987-1999)
- Ford Excursion (2000-2005)
