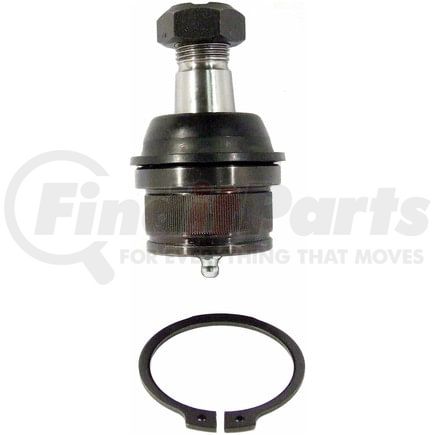

(888) 312-8812 Login SignupDELPHI TC1658 Ball Joint
Tap to view 2 more
MSRP: $44.23
$3299
Save $11.24
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 24
DELPHI TC1658 Part Description
DELPHI TC1658 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.008 IN |
| Maximum Outside Diameter | 51.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.75 IN |
| Castle Nut Included | No |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 51 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 3.543 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 0.807 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.772 IN |
| Stud Tapered End 2 Diameter | 19.6 MM |
| Stud Tapered End 1 Diameter | 0.88 IN |
| Stud Tapered End 1 Diameter | 22.35 MM |
| Stud Threads Per Inch | 16 |
| Length | 90.00 MM |
| Length | 3.540 IN |
| Stud Thread Diameter | 19.05 MM |
| Height | 89.99 MM |
| Stud Thread Length | 20.5 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604276860 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1658 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | K8194T, K8195T, K7405 |
| Mevotech | MK8195T |
| Chrysler | 3633950, 3820873, 3894976, 4746696, 4746696AB, J8122496 |
| General Motors | 14039008, 3894976 |
| Ford | D1TZ-3050A, D3TZ-3050A, F6TZ-3050CA |
| MAS Industries | B8195, BJ81015, BJ81015PR, BJ82015, BJ82305, BJ96005, BJ96005PR |
| TRW | JBJ7011 |
| Dorman | 535-335, 535-960 |
| N/A | 427789C92, GK8195T, TXK8195T, B8195XL |
DELPHI TC1658 Fits Vehicles
- International 1110 (1971-1973)
- International 1210 (1972-1973)
- International 100 (1974)
- International 1310 (1972-1973)
- International Travelall (1975)
- International 150 (1975)
- International Scout II (1975-1980)
- International 200 (1975)
- Fargo W200 Pickup (1972)
- Fargo W100 Pickup (1972)
- Jeep Commando (1972-1973)
- GMC K25/K2500 Suburban (1970-1974)
- GMC K25/K2500 Pickup (1970-1974)
- GMC K15/K1500 Suburban (1970-1974)
- GMC K15/K1500 Pickup (1970-1974)
- Dodge W300 Pickup (1972-1974)
- Dodge W200 Pickup (1972-1974)
- Dodge W100 Pickup (1972-1974)
- Chevrolet K20 Pickup (1970-1974)
- Chevrolet K10 Pickup (1970-1974)
- Ford F-350 (1980-1981)
- Ford F-250 (1974-1996)
- Ford F-150 (1976-1996)
- Ford F-100 (1971-1976, 1981-1983)
- Ford Bronco (1971-1996)
- GMC V2500 Suburban (1987-1991)
- GMC V2500 (1987)
- GMC V1500 Suburban (1987-1991)
- GMC V1500 (1987)
- GMC K2500 Suburban (1979-1986)
- GMC K25 Suburban (1975-1978)
- GMC K2500 (1979-1986)
- GMC K25 (1975-1978)
- GMC K1500 Suburban (1979-1986)
- GMC K15 Suburban (1975-1978)
- GMC K1500 (1979-1986)
- GMC K15 (1975-1978)
- GMC Jimmy (1975-1991)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet V2500 Suburban (1989-1991)
- Chevrolet V20 (1987)
- Chevrolet V1500 Suburban (1989-1991)
- Chevrolet V10 Suburban (1987-1988)
- Chevrolet V10 (1987)
- Chevrolet K20 Suburban (1970-1986)
- Chevrolet K20 (1975-1986)
- Chevrolet K10 Suburban (1970-1986)
- Chevrolet K10 (1975-1986)
- Chevrolet K5 Blazer (1975-1986)
- Chevrolet Blazer (1969-1974, 1987-1991)
- Plymouth Trailduster (1975-1981)
- Jeep Wagoneer (1974-1983)
- Jeep Scrambler (1981-1985)
- Jeep J20 (1974-1988)
- Jeep J10 (1974-1988)
- Jeep Grand Wagoneer (1984-1991)
- Jeep Cherokee (1974-1983)
- Jeep CJ6 (1972-1975)
- Jeep CJ7 (1976-1986)
- Jeep CJ5 (1972-1983)
- Dodge W350 (1981-1993)
- Dodge W300 (1975-1980)
- Dodge W250 (1981-1993)
- Dodge W200 (1975-1980)
- Dodge W150 (1977-1993)
- Dodge W100 (1975-1977, 1984-1989)
- Dodge Ramcharger (1975-1993)
- Dodge Ram 2500 (1994-1999)
- Dodge Ram 1500 (1994-1999)
- Dodge RD200 (1978-1980)
