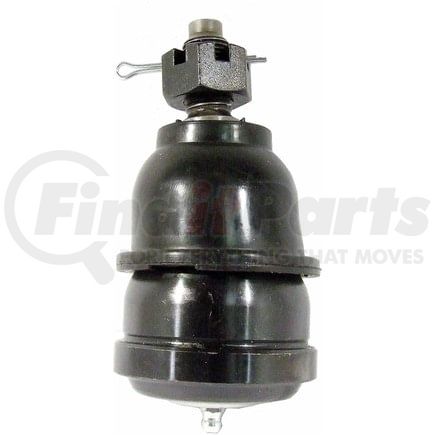

DELPHI TC1641 Part Description
DELPHI TC1641 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.500 IN |
| Color | Gray |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 66 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 5.094 IN |
| Height | 129.40 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 0.854 IN |
| Stud Thread Length | 21.7 MM |
| Stud Type | Threaded |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.965 IN |
| Stud Tapered End 2 Diameter | 24.5 MM |
| Stud Tapered End 1 Diameter | 0.781 IN |
| Stud Tapered End 1 Diameter | 19.85 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 66.00 MM |
| Maximum Outside Diameter | 63.50 MM |
| Length | 2.600 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604277034 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1641 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | K6445 |
| Mevotech | CMS9706, MK6445, MS9706, MS9707 |
| General Motors | 15616427, 15617643, 15657212, 15659724 |
| MAS Industries | B6445 |
| N/A | MK6293, JBJ7015, GK6445, GK6293, TXMS50568, K6293 |
DELPHI TC1641 Fits Vehicles
- Chevrolet C3500HD (1993-2000)
- Cadillac DTS (2006-2011)
- GMC Yukon (1995-1999)
- GMC Savana 3500 (1996-2002)
- GMC Savana 2500 (1996-2002)
- GMC Savana 1500 (1996-2002)
- GMC C3500 (1993-2000)
- GMC C2500 Suburban (1993-1999)
- GMC C2500 (1993-2000)
- GMC C1500 Suburban (1993-1999)
- GMC C1500 (1993-1999)
- Chevrolet Tahoe (1995-2000)
- Chevrolet Express 3500 (1996-2002)
- Chevrolet Express 2500 (1996-2002)
- Chevrolet Express 1500 (1996-2002)
- Chevrolet C3500 (1993-2000)
- Chevrolet C2500 Suburban (1993-1999)
- Chevrolet C2500 (1993-2000)
- Chevrolet C1500 Suburban (1993-1999)
- Chevrolet C1500 (1993-1999)
- Cadillac DeVille (1997-2005)
