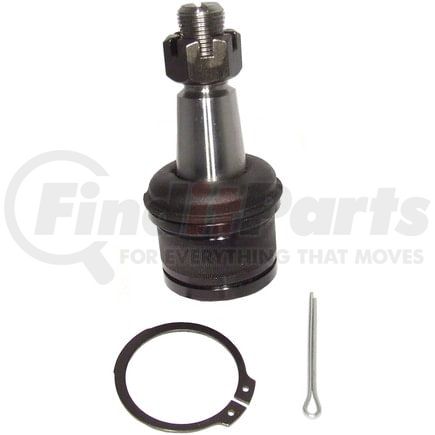

(888) 312-8812 Login SignupDELPHI TC1630 Ball Joint
Tap to view 2 more
MSRP: $62.26
$3899
Save $23.27
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
DELPHI TC1630 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1630 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.205 IN |
| Maximum Outside Diameter | 56.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.75 IN |
| Castle Nut Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 56 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 4.843 IN |
| Height | 54.00 MM |
| Nuts Included | Yes |
| Adjustable | No |
| Stud Thread Length | 1.339 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.941 IN |
| Stud Tapered End 2 Diameter | 23.9 MM |
| Stud Tapered End 1 Diameter | 1.157 IN |
| Stud Tapered End 1 Diameter | 29.4 MM |
| Stud Threads Per Inch | 16 |
| Length | 124.00 MM |
| Length | 4.880 IN |
| Stud Thread Diameter | 19.05 MM |
| Stud Thread Length | 34.01 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604277102 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1630 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | BJ86365, BJ86365XL |
| Ford | 8C2Z 3050-A, MCF3 |
| MAS Industries | BJ85195, BJ86365, BJ86365RD, BJ86365XL |
| MEVOTECH | TXK80197 |
| MOOG Chassis Products | K80197, K8609T |
| Mevotech | MK80197 |
| N/A | 5C2Z 3050-BA, F2UZ 3050-B, XC2Z 3050-AA, MK8609T, GK80197, GS401214, TXK80197, TXK8609T, JBJ1030, 610.65012, YC2Z 3050-BA |
| TRW | JBJ1175 |
DELPHI TC1630 Fits Vehicles
- Ford E-550 Econoline Super Duty (2002)
- Ford E-450 Econoline Super Duty (1999-2002)
- Ford Econoline Super Duty (1996-1999)
- Ford E-450 Super Duty (2010-2019, 2021-2025)
- Ford E-350 Super Duty (1999-2019, 2021-2025)
- Ford E-150 (2007-2014)
- Ford E-350 Econoline Club Wagon (1992-2002)
- Ford E-350 Club Wagon (2003-2005)
- Ford E-350 Econoline (1992-1998)
- Ford E-250 (2003-2014)
- Ford E-250 Econoline (1992-2002)
