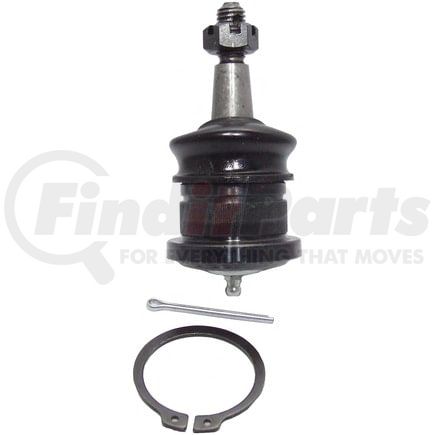

(888) 312-8812 Login SignupDELPHI TC1625 Ball Joint
Tap to view 2 more
MSRP: $72.97
$5149
Save $21.48
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC1625 Part Description
DELPHI TC1625 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.079 IN |
| Maximum Outside Diameter | 52.80 MM |
| Color | Gray |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 52.8 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.055 IN |
| Height | 53.00 MM |
| Nuts Included | Yes |
| Adjustable | No |
| Stud Thread Length | 0.925 IN |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.524 IN |
| Stud Tapered End 2 Diameter | 13.3 MM |
| Stud Tapered End 1 Diameter | 0.705 IN |
| Stud Tapered End 1 Diameter | 17.9 MM |
| Stud Thread Pitch | 1.75 MM |
| Length | 4.060 IN |
| Length | 103.12 MM |
| Stud Thread Diameter | 0.47 IN |
| Stud Thread Length | 23.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604277157 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC1625 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | K6540, RK621782 |
| Mevotech | MK6540 |
| General Motors | 12475485, 12475486 |
| MAS Industries | B6540, BJ90276 |
| TRW | JBJ845 |
| Dorman | 520-116 |
| N/A | GK6540, TXK6540 |
DELPHI TC1625 Fits Vehicles
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- Cadillac Escalade EXT (2002-2006)
- Cadillac Escalade ESV (2003-2006)
- GMC Yukon XL 1500 (2000-2006)
- GMC Yukon (2000-2006)
- GMC Sierra 1500 (1999-2006)
- GMC Savana 2500 (2003-2005)
- GMC Savana 1500 (2003-2008)
- Chevrolet Tahoe (2000-2006)
- Chevrolet Suburban 1500 (2000-2006)
- Chevrolet Silverado 1500 (1999-2006)
- Chevrolet Express 2500 (2003-2005)
- Chevrolet Express 1500 (2003-2008)
- Chevrolet Avalanche 1500 (2002-2006)
- Cadillac Escalade (2002-2006)
