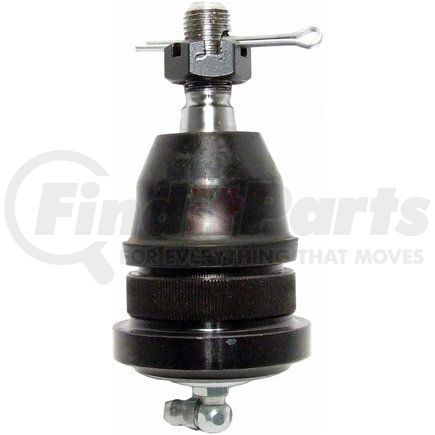

DELPHI TC1622 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1622 Specifications
Product Attributes
| Position(s) | Front Lower, Rear Lower. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.929 IN |
| Maximum Outside Diameter | 49.00 MM |
| Color | Gray |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 49 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.622 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Stud Thread Length | 1.024 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.512 IN |
| Stud Tapered End 2 Diameter | 13 MM |
| Stud Tapered End 1 Diameter | 0.634 IN |
| Stud Tapered End 1 Diameter | 16.1 MM |
| Stud Thread Pitch | 1.25 MM |
| Length | 92.00 MM |
| Length | 3.620 IN |
| Stud Thread Diameter | 0.47 IN |
| Height | 92.00 MM |
| Stud Thread Length | 26.01 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604277171 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1622 Cross References
DELPHI TC1622 Fits Vehicles
- Pontiac Fiero (1988)
- Oldsmobile Delta 88 (1986-1991)
- Cadillac 60 Special (1993)
- Cadillac Fleetwood (1985-1992)
- Cadillac DeVille (1985-1993)
- Cadillac Commercial Chassis (1985-1993)
- Buick Electra (1985-1990)
- Pontiac Bonneville (1987-1999)
- Oldsmobile Regency (1997-1998)
- Oldsmobile LSS (1996-1999)
- Oldsmobile 88 (1992-1999)
- Oldsmobile 98 (1985-1996)
- Buick Park Avenue (1991-1996)
- Buick LeSabre (1986-1999)
