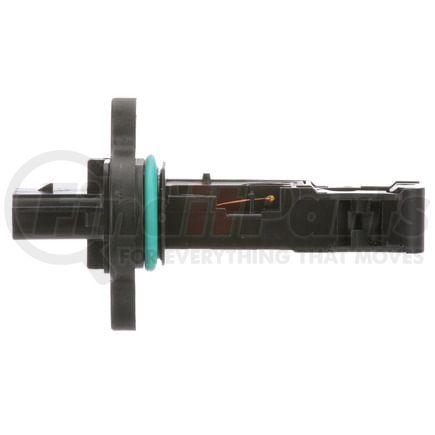

(888) 312-8812 Login SignupDELPHI AF10422 Mass Air Flow Sensor
$12799
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 17
DELPHI AF10422 Part Description
DELPHI AF10422 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black and Silver |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 8 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 54 MM |
| Sensor Casing Width | 55 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 54.20 MM |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 47.8 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.1 IN |
| Sensor Casing Width | 2.1 IN |
| Bolt Hole Center To Bolt Hole Center | 2.10 IN |
| Mounting Hole Diameter | 5.5 MM |
| Seal Outside Diameter | 1.8 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604282595 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10422 Part Interchanges
| Brand | Part Number |
|---|---|
| Bosch | 0280218312, 0280218419 |
| ACDelco | 13505433 |
| BWD | MA1153, MA1188 |
| General Motors | 12671624, 12671642, 13432262, 13505433 |
| Standard Motor Products | MAS0321, MAS0356 |
| N/A | 214165, MA394, 12671624, 5S13839, MF21304, MF21304N |
DELPHI AF10422 Fits Vehicles
- Chevrolet Cruze Limited (2016)
- Chevrolet Trax (2015-2021)
- Buick Encore (2013-2021)
- Buick Verano (2012-2017)
- Chevrolet Sonic (2012-2020)
- Chevrolet Cruze (2012-2015, 2017-2019)
