DELPHI AF10388 Part Description
Manufacturer
Product Description

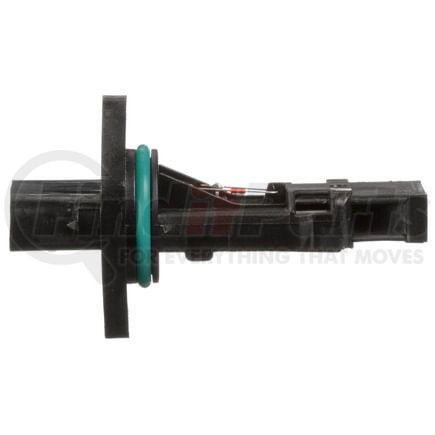

Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10388 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Item Grade | Premium |
| Color | Black |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 61 MM |
| Sensor Casing Width | 38.5 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 47.00 MM |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 36 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.4 IN |
| Sensor Casing Width | 1.5 IN |
| Bolt Hole Center To Bolt Hole Center | 1.80 IN |
| Mounting Hole Diameter | 5.2 MM |
| Seal Outside Diameter | 1.4 IN |
| Intake Air Temperature (IAT) Included | Yes |
Additional Information
| Harmonized Tariff Code (HTS) | 9026208000 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604271643 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10388 Cross References
| Brand | Part Number |
|---|---|
| BWD | MA1034 |
| Beck/Arnley | 157-0387 |
| Bosch | 0280217810 |
| CARDONE Reman | 74-10104 |
| Carquest | MQ7404 |
| Duralast | DL-3082, DL-6005 |
| Mercedes-Benz | 113 094 00 48, 113 094 00 48 80 |
| N/A | MQ6367, 245-1123, 5S2776, MF21151, 245-2123, A 113 094 00 48 |
| NAPA Reman Computers | XTP410104 |
| NGK SPARK PLUGS | MG0071 |
| NTK | MG0071 |
| Spectra Premium | MA109 |
| Standard Motor Products | MAS0161 |
| WAI | MAF10158 |
| WALKER PRODUCTS | 245-2123 |
| Wells | SU6059 |
DELPHI AF10388 Fits Vehicles
- Mercedes-Benz R500 (2006-2007)
- Mercedes-Benz CLS500 (2006)
- Mercedes-Benz SLK55 AMG (2005-2010)
- Mercedes-Benz C55 AMG (2005-2006)
- Mercedes-Benz E320 (2004)
- Mercedes-Benz SL500 (1999-2006)
- Mercedes-Benz S600 (2001-2002)
- Mercedes-Benz S55 AMG (2001-2002)
- Mercedes-Benz S500 (2000-2006)
- Mercedes-Benz S430 (2000-2006)
- Mercedes-Benz ML55 AMG (2000-2003)
- Mercedes-Benz ML430 (1999-2001)
- Mercedes-Benz ML500 (2002-2007)
- Mercedes-Benz G500 (2002-2008)
- Mercedes-Benz G55 AMG (2003-2009)
- Mercedes-Benz E55 AMG (1999-2006)
- Mercedes-Benz E500 (2003-2006)
- Mercedes-Benz E430 (1998-2002)
- Mercedes-Benz CLK55 AMG (2001-2006)
- Mercedes-Benz CLK500 (2003-2006)
- Mercedes-Benz CLK430 (1999-2003)
- Mercedes-Benz CL600 (2001-2002)
- Mercedes-Benz CL55 AMG (2001-2002)
- Mercedes-Benz CL500 (2000-2006)
- Mercedes-Benz C43 AMG (1998-2000)
