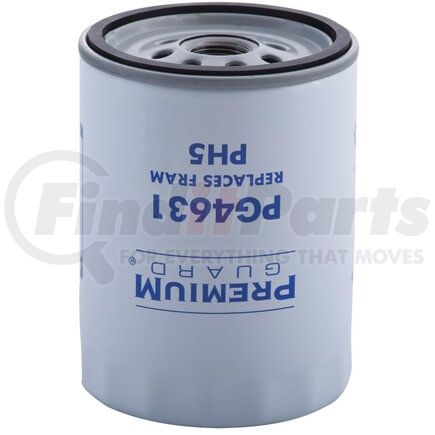

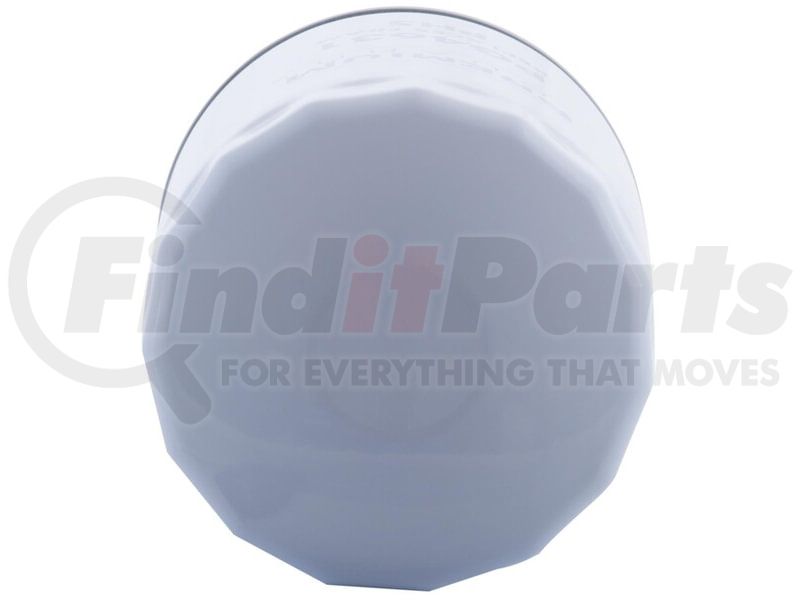

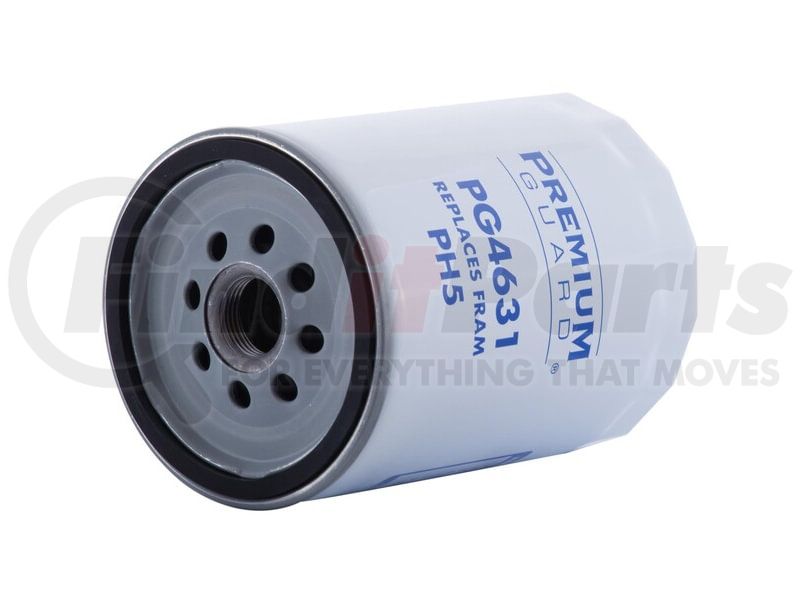

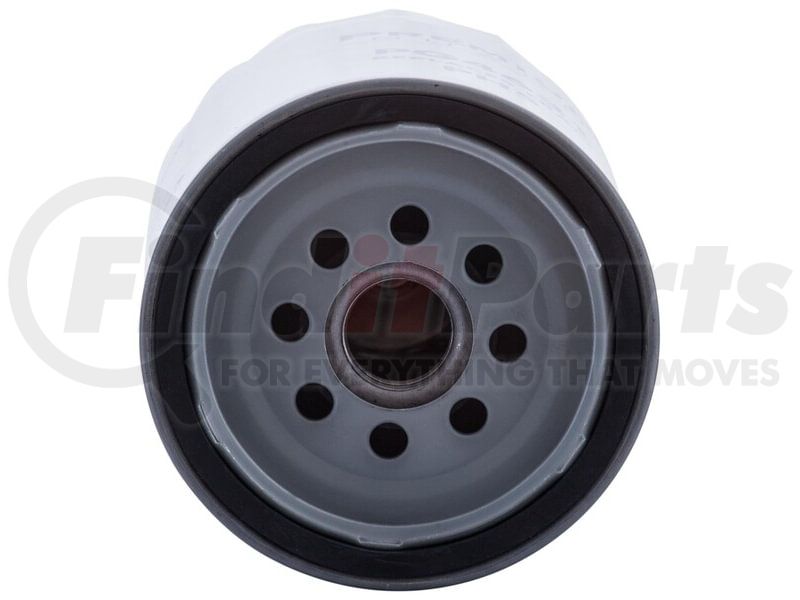

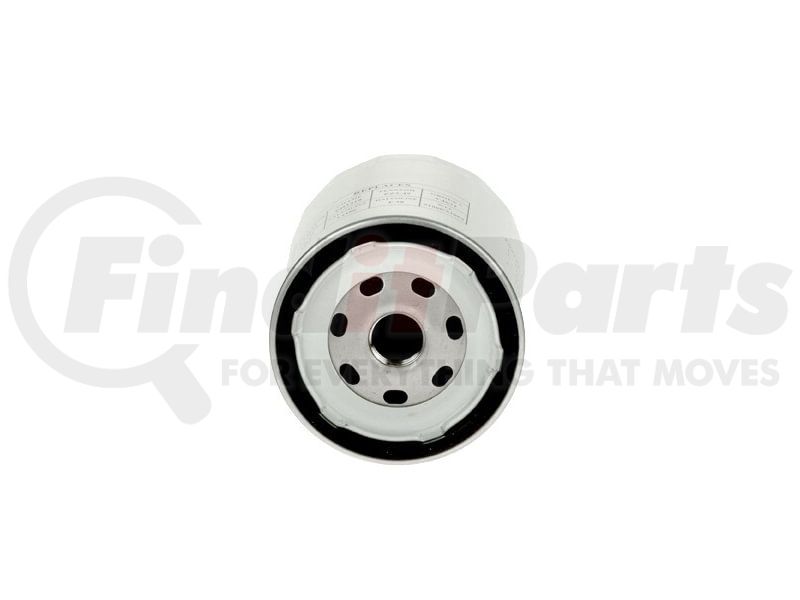

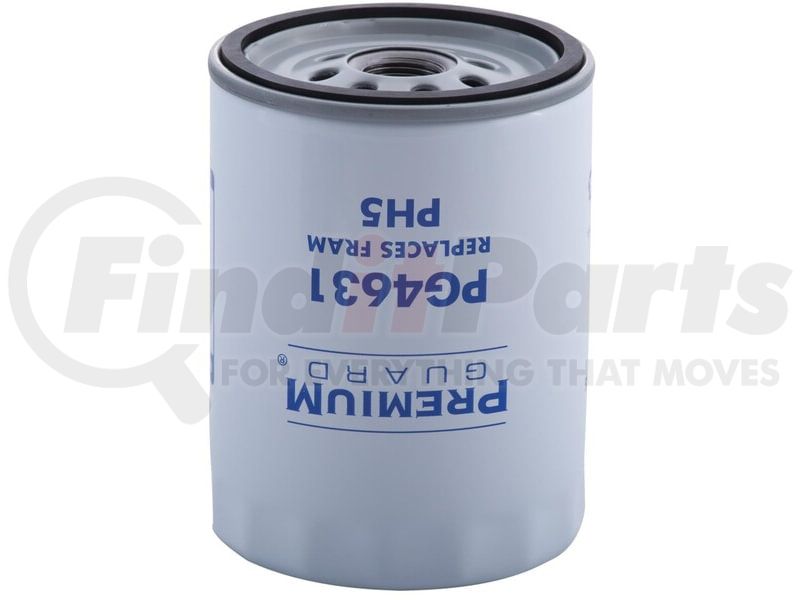

PREMIUM GUARD PG4631 Part Description
Manufacturer
Product Description
Premium Guard Oil Filter
Features & Benefits
- Connects directly to the engine adapter through its spin-on base
- Houses the bypass function inside the sealed filter housing
- Disposable shell carries the used filter media away with the canister
- Sealed canister contains pressurized engine oil during circulation through the element
Premium Guard Engine Oil Filter
Keep fresh filter media in selected Chevrolet, GMC, Isuzu, and Pontiac lubrication systems with the Premium Guard Engine Oil Filter built around a 13/16-16 spin-on mount. Its canister contains the media, sealing gasket, and internal bypass function in one removable assembly. At each filter change, the complete canister leaves the engine rather than a loose element from a reusable housing. The 13/16-16 mount and vehicle coverage of the Premium Guard PG4631 place it among traditional threaded spin-on filters rather than cartridge-style elements.
PREMIUM GUARD PG4631 Specifications
Product Attributes
| Filter Type | Spin-on |
| Filter Media Material | Enhanced Cellulose |
| Micron Rating | 20 |
| Flow Rate | 25L/min |
| Anti-Drain Back Valve | yes |
| Bypass Relief Valve | yes |
| Height | 5.22 IN |
| Gasket Inside Diameter | 3.07 IN |
| Gasket Outside Diameter | 3.43 IN |
| Gasket Thickness | 0.18 IN |
| Gasket Type | NBR |
| Height | 5.22 IN |
| Gasket Inside Diameter | 3.07 IN |
| Gasket Outside Diameter | 3.43 IN |
| Gasket Thickness | 0.18 IN |
| Outer Diameter Bottom | 3.66 IN |
| Inside Thread Size | 13/16"-16UNF-2B |
| Gasket Outside Diameter | 78 MM |
| Burst Pressure | 290 PS |
| Bypass Relief Valve Setting | 14-17 PS |
| Flow Rate | 396.26 GPH |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Canadian Harmonizing Tariff Code | 8421230000 |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| UPC | 00846156016638 |

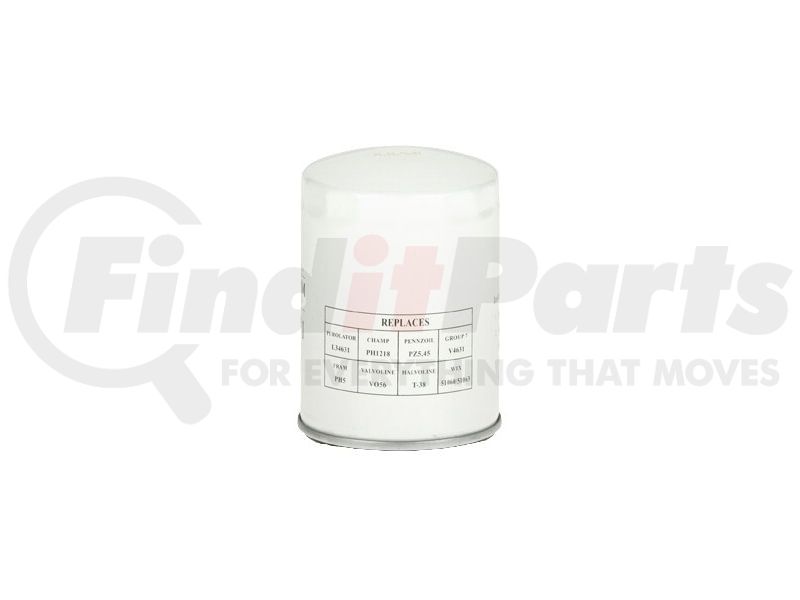

PREMIUM GUARD PG4631 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | PF1218 |
| Allis Chalmers | 1146873-3 |
| Amsoil | ASF24 |
| Atlas | G-70 |
| Atlas (Canada) | OF-40 |
| Autoedge | AL13 |
| Autopart International | FE125 |
| BALDWIN | B1428 |
| Big A | 92060 |
| Bosch | 3510 |
| Brunswick Mercruiser | 14957 |
| CARQUEST | 85061 |
| Canadian Tire | 17-1729-4 |
| Car Care | IOF13 |
| Carquest Premium Filters | 85060MP |
| Carquest Standard | R85060MP |
| Cartek | CTK5 |
| Casite Filters | CF279 |
| Castrol | CAS5 |
| Cenex | CO1218 |
| Champ | PH1218 |
| Champ filters | PH1218 |
| Champion Filters | 41060T |
| Citgo Petroleum | C4631 |
| Co-op | PL-PF-11 |
| Deluxe Walker | WD-130 |
| Deutsch | D536 |
| Donaldson | LFP55-0035 |
| Duralast | D1011 |
| ECOGARD | X4631 |
| ECOGUARD | X4631 |
| EXXON/MOBIL OIL | M1302, M1302A |
| FRAM | DL5, M1-302A, M1-302, PH5 |
| FRAM Drive | FD5 |
| FRAM Force | FF5 |
| FRAM Titanium | FS5 |
| FVP | R1620 |
| Facet | 13 |
| Federated | PG4631BF |
| Filters Inc | OF1218 |
| Firestone | 7092312 |
| Flag Filters | C-13A |
| Fleetguard | LF3488 |
| Ford | C3RZ-6731-A |
| GK Industries | OF34631 |
| GMB | 699-0005 |
| General Motors | 5578029 |
| Gonher | GP-13 |
| Group 7 | V4631 |
| Hastings | LF224 |
| Havoline | T-17 |
| Heritage | HL13 |
| Hutchens | SF40 |
| Interfil | OF-13 |
| International Harvester IHC | 7098846C1 |
| Isuzu | 8-06438-384-0 |
| Jiffy Lube | JL40 |
| John Deere | TY22085 |
| K&N | HP-3002 |
| Kohler | GM87592 |
| Kralinator | L270 |
| Lee | LF-1218 |
| Luber-finer | PH1218 |
| MAHLE | OC 114 |
| MOBIL OIL | M1302, M1302A |
| Mann-Filter | ML 1011 |
| Marathon | MO13 |
| Mercury Marine | 14957 |
| MicroGard | MGL51060 |
| MicroGard Select | MSL51060 |
| Mighty Distributing System | M40 |
| Mileguard | MO5 |
| Mobil | MO4631 |
| Mobil 1 | M1-302 |
| Mopar | L-134 |
| Motor Trend | ML5 |
| Motorcraft | FL-12 |
| NAPA Gold Filters | 1060 |
| NAPA ProSelect Filters | 21060 |
| NAPA Silver Filters | 1061 |
| Napa Proformer | 21060 |
| Nelson | 85116-A |
| Outboard Marine (OMC) | 173233 |
| PSI | 30100345 |
| PUREPRO | L5313 |
| PUROLATOR | TL34631, TL34631BP, PBL34631, PL34631 |
| Parts Master | 61060 |
| Parts Plus | PH1218 |
| Pennzoil | PZ-45 |
| Penske | PN13 |
| Pentius | PLB5 |
| Performax | PO-45 |
| Powerflow | SL34631 |
| Prime Guard | POF4631 |
| Pro-Gauge | PGO-40 |
| Pro-Series OE+ | PRS5 |
| Pro-Tec | 132 |
| Promotive | PH4631 |
| Pronto | PO4631 |
| PureZone | 8-51060 |
| Purolator | L34631 |
| QAP Filter | QL30040 |
| Quaker State | QS13 |
| Quicksilver | 14957 |
| STP | SL5 |
| STP Filters | S5 |
| Security Filters | PH1218 |
| Service Champ | OF40A |
| Service Pro | M4631 |
| Shell - Archived | SH38 |
| Sierra Marine | 18-7876 |
| Super Tech Filters | ST5 |
| TruStar | TO5 |
| Valucraft | V5 |
| Valvoline | VO-56 |
| Volvo | 3130907 |
| Volvo Penta | 3850559 |
| WALMI | WS-13 |
| WGB | S-151-CP |
| WIX FILTERS | 51060, WIX FILTERS, 51060XP |
| Wix | 51060 |
| Yamaha | YSC14231200C |
| Z-Max | M4631 |
PREMIUM GUARD PG4631 Fits Vehicles
- Freightliner B2 (2019-2023)
- Freightliner S2G (2019-2022)
- AM General Hummer (1992-2001)
- Blue Bird All American FE (1989-1991)
- Blue Bird SHL All American (1988-1989)
- Cadillac Escalade (2000)
- Checker Marathon (1965-1967)
- Chevrolet B60 (1980-1991)
- Chevrolet B7 (1997-1998)
- Chevrolet Blazer (1969-1974, 1987-1991, 1994)
- Chevrolet C10 (1975-1986)
- Chevrolet C10 Panel (1966-1967)
- Chevrolet C10 Pickup (1963-1974)
- Chevrolet C10 Suburban (1967-1986)
- Chevrolet C15 (1982-1985)
- Chevrolet C1500 (1988-1999)
- Chevrolet C1500 Suburban (1992-1999)
- Chevrolet C20 (1975-1987)
- Chevrolet C20 Panel (1967)
- Chevrolet C20 Pickup (1963-1974)
- Chevrolet C20 Suburban (1967-1986)
- Chevrolet C2500 (1988-2000)
- Chevrolet C2500 Suburban (1992-1999)
- Chevrolet C30 (1975-1986)
- Chevrolet C30 Panel (1966)
- Chevrolet C30 Pickup (1963-1974)
- Chevrolet C35 (1983-1991, 2000)
- Chevrolet C3500 (1988-2000)
- Chevrolet C3500HD (1991-2002)
- Chevrolet C50 (1966-1990)
- Chevrolet C60 (1969-1990)
- Chevrolet C70 (1979-1990)
- Chevrolet Cargo Van (1997-2000)
- Chevrolet El Camino (1964-1966, 1968-1979)
- Chevrolet Express 1500 (1996-2002)
- Chevrolet Express 2500 (1996-2002)
- Chevrolet Express 3500 (1996-2002)
- Chevrolet G10 (1975-1995)
- Chevrolet G10 Van (1964-1974)
- Chevrolet G20 (1975-1995)
- Chevrolet G20 Van (1967-1974)
- Chevrolet G30 (1975-1996)
- Chevrolet G30 Van (1970-1974)
- Chevrolet GP3500 (1993-1996)
- Chevrolet K10 (1975-1986)
- Chevrolet K10 Pickup (1963-1974)
- Chevrolet K10 Suburban (1967-1986)
- Chevrolet K1500 (1988-1998)
- Chevrolet K1500 Suburban (1994-1999)
- Chevrolet K20 (1975-1986)
- Chevrolet K20 Panel (1967)
- Chevrolet K20 Pickup (1963-1974)
- Chevrolet K20 Suburban (1967-1986)
- Chevrolet K2500 (1988-2000)
- Chevrolet K2500 Suburban (1992-1999)
- Chevrolet K30 (1977-1986)
- Chevrolet K30 Pickup (1968-1974)
- Chevrolet K3500 (1988-2000)
- Chevrolet K5 Blazer (1975-1986)
- Chevrolet L30 (1999-2000)
- Chevrolet Malibu (1981)
- Chevrolet P10 (1975, 1977-1979)
- Chevrolet P10 Series (1966-1967)
- Chevrolet P10 Van (1968, 1973)
- Chevrolet P20 (1975-1989)
- Chevrolet P20 Series (1963-1967)
- Chevrolet P20 Van (1968-1974)
- Chevrolet P30 (1975-2005)
- Chevrolet P30 Series (1963-1967)
- Chevrolet P30 Van (1968-1974)
- Chevrolet P60 (1983-1990)
- Chevrolet R10 (1987)
- Chevrolet R10 Suburban (1987-1988)
- Chevrolet R1500 Suburban (1989-1991)
- Chevrolet R20 (1987-1988)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R2500 (1989)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R3500 (1989-1991)
- Chevrolet Silverado (1995-1997)
- Chevrolet Silverado 2500 (2000-2002)
- Chevrolet Silverado 3500 (2004-2006)
- Chevrolet Sonora (2000-2002)
- Chevrolet Suburban (1963-1966, 1987-1994)
- Chevrolet Suburban 1500 (2000-2001)
- Chevrolet T6500 (1997-1998)
- Chevrolet T7500 (1997-1998)
- Chevrolet Tahoe (1995-2000)
- Chevrolet V10 (1987)
- Chevrolet V10 Suburban (1987-1988)
- Chevrolet V1500 Suburban (1989-1991)
- Chevrolet V20 (1987)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet V2500 Suburban (1989-1991)
- Chevrolet V30 (1987-1988)
- Chevrolet V3500 (1989-1991)
- Chevrolet W3500 Tiltmaster (1995-2003)
- Chevrolet W4500 Tiltmaster (1993-2003)
- Chinook Motor Coach Destiny (2001)
- Crane Carrier Low Entry (1987-1990)
- Emergency One Emergency One (2005)
- Excalibur Phaeton (1976)
- Fleetwood Bounder (2000-2001)
- Fleetwood Flair (2000-2001)
- Fleetwood Southwind Storm (2000)
- Ford B-200 (1987-1991)
- Ford B-600 (1980-1987)
- Ford B-700 (1980-1987)
- Ford C600 (1980-1986)
- Ford C700 (1980-1986)
- Ford C800 (1980-1989)
- Ford C8000 (1989)
- Ford CT800D (1981-1982)
- Ford F-600 (1980-1987)
- Ford F-700 (1980-1987)
- Ford F-7000 (1985)
- Ford F-800 (1980-1987)
- Ford FT900 (1985-1987)
- Ford LN600 (1981-1985)
- Ford LN700 (1981-1986)
- Ford LN800 (1981-1985)
- GMC 1000 (1966)
- GMC 1000 Series (1963-1965)
- GMC 1500 (1966)
- GMC 1500 Series (1963-1965)
- GMC 2500 (1966)
- GMC 2500 Series (1963-1965)
- GMC 3000 (1963-1966)
- GMC 3500 (1963-1966)
- GMC B6000 (1980-1991)
- GMC B7 (1997-1998)
- GMC C15 (1975-1978)
- GMC C15 Suburban (1975-1978)
- GMC C15/C1500 Pickup (1967-1974)
- GMC C15/C1500 Suburban (1967-1974)
- GMC C1500 (1979-1986, 1988-1999)
- GMC C1500 Suburban (1979-1986, 1992-1999)
- GMC C25 (1975-1978)
- GMC C25 Suburban (1975-1978)
- GMC C25/C2500 Pickup (1967-1974)
- GMC C25/C2500 Suburban (1967-1974)
- GMC C2500 (1979-1986, 1988-2000)
- GMC C2500 Suburban (1979-1986, 1992-1999)
- GMC C35 (1975-1978)
- GMC C35/C3500 Pickup (1967-1974)
- GMC C3500 (1979-1986, 1988-2000)
- GMC C3500HD (1991-2002)
- GMC C5000 (1979-1990)
- GMC C6000 (1979-1990)
- GMC C7000 (1979-1990)
- GMC G1000 Series (1963-1966)
- GMC G15 (1975-1978)
- GMC G15/G1500 Van (1967-1974)
- GMC G1500 (1979-1995)
- GMC G25 (1975-1978)
- GMC G25/G2500 Van (1967-1974)
- GMC G2500 (1979-1995)
- GMC G35 (1975-1978)
- GMC G35/G3500 Van (1970-1974)
- GMC G3500 (1979-1996)
- GMC I1000 (1966)
- GMC I1500 (1966)
- GMC I2500 (1966)
- GMC I3500 (1966)
- GMC Jimmy (1970-1991)
- GMC K15 (1975-1978)
- GMC K15 Suburban (1975-1978)
- GMC K15/K1500 Pickup (1967-1974)
- GMC K15/K1500 Suburban (1967-1974)
- GMC K1500 (1979-1986, 1988-1998)
- GMC K1500 Suburban (1979-1986, 1995-1999)
- GMC K25 (1975-1978)
- GMC K25 Suburban (1975-1978)
- GMC K25/K2500 Pickup (1967-1974)
- GMC K25/K2500 Suburban (1967-1974)
- GMC K2500 (1979-1986, 1988-2000)
- GMC K2500 Suburban (1979-1986, 1992-1999)
- GMC K35 (1977-1978)
- GMC K35/K3500 Pickup (1968-1974)
- GMC K3500 (1979-1986, 1988-2000)
- GMC LI3500 (1967)
- GMC P1000 (1966)
- GMC P15/P1500 Van (1967, 1970-1973)
- GMC P1500 (1979)
- GMC P25 (1975-1978)
- GMC P25/P2500 Van (1967-1974)
- GMC P2500 (1979-1989)
- GMC P35 (1975-1978)
- GMC P35/P3500 Van (1967-1974)
- GMC P3500 (1979-1999)
- GMC P6000 (1983-1990)
- GMC PB1000 Series (1965-1966)
- GMC PB15 Series (1966)
- GMC PB1500 Series (1965)
- GMC PB25 Series (1966)
- GMC PB2500 Series (1965)
- GMC PB2500 Van (1966)
- GMC R1500 (1987)
- GMC R1500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC R2500 Suburban (1987-1991)
- GMC R3500 (1987-1991)
- GMC Savana 1500 (1996-2002)
- GMC Savana 2500 (1996-2002)
- GMC Savana 3500 (1996-2002)
- GMC Sprint (1971-1977)
- GMC Suburban (1963-1966)
- GMC T6500 (1997-1998)
- GMC T7500 (1997-1998)
- GMC V1500 (1987)
- GMC V1500 Suburban (1987-1991)
- GMC V2500 (1987)
- GMC V2500 Suburban (1987-1991)
- GMC V3500 (1987-1991)
- GMC W3500 Forward (1998-2003)
- GMC W4500 Forward (1998-2003)
- GMC Yukon (1992-2000)
- Hummer H1 (2002-2004)
- IC Corporation CE Commercial (2022)
- IC Corporation CE School Bus (2016-2024)
- Isuzu NPR (1992-2003)
- Isuzu NPR-HD (2000-2003)
- Itasca Spirit (2001-2004)
- Itasca Sunrise (2000-2001)
- Ottawa YT30 (1988-1990)
- Ottawa YT60T (1988)
- Pontiac Firebird (1989)
- R-Vision Stratus (2003)
- R-Vision Trail-Lite (2001-2002)
- R-Vision Trail-Lite LE (2002)
- Roadtrek Popular (2000-2002)
- Roadtrek Versatile (2000-2002)
- Safari Trek (2000)
- Workhorse Custom Chassis P32 (1999-2005, 2007)
- Workhorse Custom Chassis P42 (1999-2005)
- Workhorse FasTrack FT1801 (2002-2004)
- Workhorse FasTrack FT1802 (2002-2003)
- Workhorse P32 (1999-2003)
- Workhorse P42 (1999-2005)
- Workhorse W42 (2004)
PREMIUM GUARD PG4631 Customer Reviews
No reviews yet
Be the first to review this product!
PREMIUM GUARD PG4631 Questions & Answers
No questions yet
Be the first to ask a question about this product!
California residents see
Related Searches
engine parts
filters parts
auxiliary engine oil filter
centifugal engine oil filter assembly
engine oil filter / cooler bracket socket
engine oil filter drain deflector
engine oil filter element
engine oil filter element o-ring
engine oil filter hose
chevrolet engine oil filter
gmc engine oil filter
ford engine oil filter
