RAYBESTOS 781087FZN Part Description
Manufacturer
Product Description

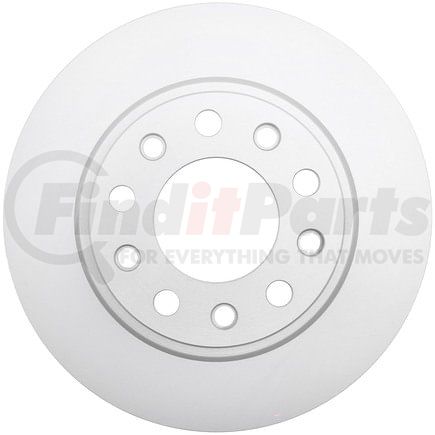

Raybestos Element3 Coated Brake Rotor
Application Summary
2016-2013 Dodge Dart Rear
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 781087FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.76 IN |
| Center Hole Diameter | 70.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.858 IN |
| Inside Diameter | 174.2 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 110 MM |
| Mounting Bolt Hole Diameter | 0.559 IN |
| Mounting Bolt Hole Diameter | 14.2 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 10.394 IN |
| Outside Diameter | 264 MM |
| Overall Height | 1.595 IN |
| Overall Height | 40.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213197198 |
RAYBESTOS 781087FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH425688, YH425688C, YH425688P |
| ALFA ROMEO | 51815313 |
| AUTOXTRA | AX901200 |
| AUTOZONE | 72121, 72121DG, 72121DL |
| BENDIX | PRT6180 |
| BRAKEBEST | 71931RGS, 781087, 781087FZN, 781087R |
| Brembo | 08.9460.41, 08.9460.4X |
| CENTRIC | 120.63077, 120.63077CRY, 121.63077, 125.63077, 126.63077CSL, 126.63077CSR, 126.63077SL, 126.63077SR, 127.63077L, 127.63077R, 128.63077CL, 128.63077CR, 128.63077L, 128.63077R, 320.63077 |
| CHRYSLER | 68082121AA, 68082121AB |
| Centric Parts | 120.63077, 120.63077CRY, 121.63077, 125.63077, 126.63077CSL, 126.63077CSR, 126.63077SL, 126.63077SR, 127.63077L, 127.63077R, 128.63077CL, 128.63077CR, 128.63077L, 128.63077R, 320.63077 |
| DURA CORP | BR901200 |
| DuraGo | BR901200, BR90120002 |
| Dynamic Friction Company | 600-40030 |
| NAPA BRAKES | SDK6673 |
| NEWTEK AUTOMOTIVE | R1200 |
| Newtek Automotive USA | R1200 |
| POWERSTOP | AR83084EVC |
| PROMAX | 14-630011, 14-HR014 |
| Qualis | 43184 |
| TopNotch | TN781087GEO |
| UAP | 2901200, R63077 |
| Ultra Brake | 53222 |
| WAGNER BRAKE | BD180552 |
| WORLDPAC | 1407-425688 |
| Wagner Brake | BD180552E |
| Winhere | 661931 |
RAYBESTOS 781087FZN Fits Vehicles
- Dodge Dart (2013-2016)
