(888) 312-8812 Login SignupRAYBESTOS 582031 Raybestos Specialty - Street Performance Coated Brake Rotor
$49.43
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 582031 Part Description
Manufacturer
Product Description

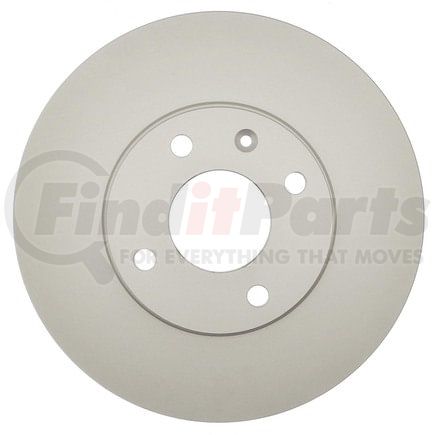

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2021-2016 Chevrolet Spark Front, 2017-2016 Chevrolet Spark Classic Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 582031 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.366 IN |
| Center Hole Diameter | 60.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 5.709 IN |
| Inside Diameter | 145 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 0.496 IN |
| Mounting Bolt Hole Diameter | 12.6 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 10.079 IN |
| Outside Diameter | 256 MM |
| Overall Height | 1.614 IN |
| Overall Height | 41 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213217537 |
RAYBESTOS 582031 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH548502P |
| AutoZone | 72067DL |
| BRAKEBEST | 582031, 582031R |
| BrakeBest | 582031RGS |
| CENTRIC | 120.49012, 121.49012, 126.49012SL, 126.49012SR, 127.49012L, 127.49012R, 128.49012L, 128.49012R |
| Centric Parts | 120.49012, 121.49012, 126.49012SL, 126.49012SR, 127.49012L, 127.49012R, 128.49012L, 128.49012R |
| Dura Corp | BR901606, BR901606-01 |
| DuraGo | BR901606, BR901606-01 |
| Dynamic Friction Company | 604-47076 |
| GM | 13584674, 13584677, 13584679 |
| General Motors | 13584674, 13584677, 13584679 |
| NEWTEK AUTOMOTIVE | R1606 |
| Newtek Automotive USA | R1606 |
| PROMAX | 14-650006 |
| Qualis | 41343 |
| TopNotch | TN582031GEO |
| UAP | R49012 |
| WORLDPAC | 1407-548502 |
| Wagner Brake | BD180769E |
| Winhere | 6622103 |
RAYBESTOS 582031 Fits Vehicles
- Chevrolet Spark Classic (2016-2017)
- Chevrolet Spark (2016-2022)
