(888) 312-8812 Login SignupRAYBESTOS SP786ATRH DISC BRAKE PAD
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS SP786ATRH Part Description
Manufacturer
Product Description

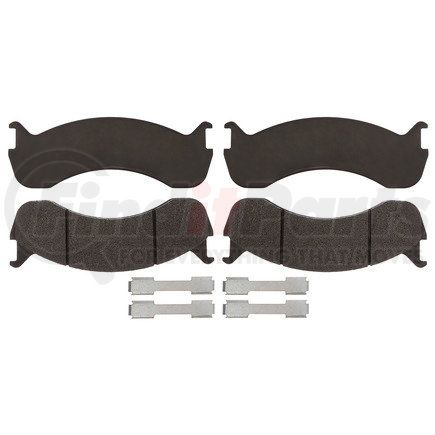

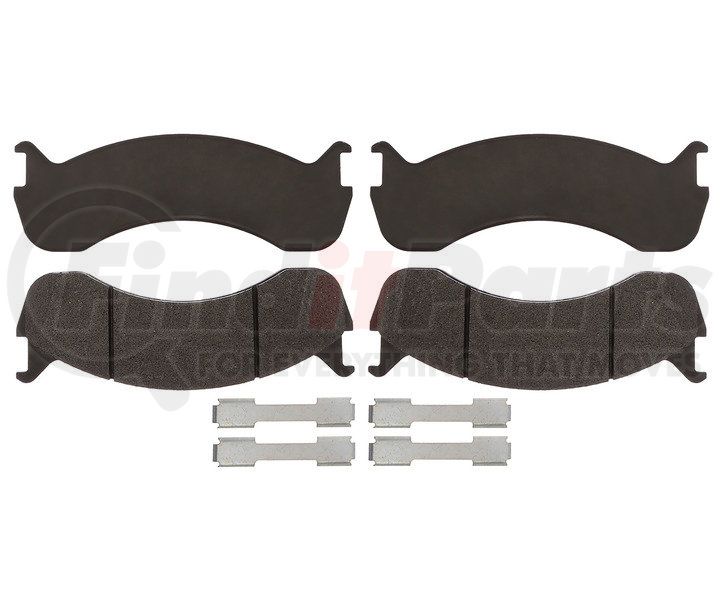

Raybestos Specialty - Medium Duty Metallic Brake Pad Set
Application Summary
2018-2003 Freightliner M2 106 Front, 2018-2003 Freightliner M2 106 Rear, 2009-2002 International 4300 Front, 2009-2002 International 4300 Rear, 2018-2005 Freightliner B2 Front, 2018-2005 Freightliner B2 Rear, 2022-2021 Ford F53 Rear
Features & Benefits
- OE Fit, Form, and Function
- Designs and formulations that conform to OE fit, form, and function.
- Mechanical Retention System (MRS)
- A Mechanical Retention System (MRS) is used offering improved shear strength on large puck assemblies, reduced pad end lift noise, increased safety & pad life, and reduced rust jacking & bonding.
- Application Specific Materials
- Features heavy-duty, application specific materials with comprehensive and late model coverage.
- Low Fade Braking
- Low fade braking for optimum safety.
- Minimal Dust
- Offers heavy duty performance with low dust.
- Stainless Steel Hardware
- Rubber-coated, stainless-steel hardware included (where applicable).
RAYBESTOS SP786ATRH Specifications
Product Attributes
| FMSI Number | D786A-L7655 |
| Friction Material Composition | Metallic |
| Inner Pad Height | 3.350 in |
| Inner Pad Overall Thickness | 1.055 IN |
| Inner Pad Width | 9.610 in |
| Mounting Hardware Included | Yes |
| Outer Pad Height | 3.350 IN |
| Outer Pad Overall Thickness | 1.055 in |
| Outer Pad Width | 9.610 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708301900 |
| Harmonized Tariff Code (HTS) | 8708305040 |
| UPC | 00887213192124 |
RAYBESTOS SP786ATRH Cross References
| Brand | Part Number |
|---|---|
| Abex Friction Products | SD786A |
| Advance Auto Parts | FLD786A |
| American Remanufactured | 64-D786A |
| AutoZone | D786ASD |
| Autospecialty | 26-786A-01 |
| Bendix | MKD786 |
| Bosch | BHD786A |
| BrakeBest | MKD786A |
| CENTRIC | 106.07860 |
| Centric Parts | 102.07861, 104.07861, 106.07861, 300.07861 |
| Euclid | E-D786-S, E-D786A-M, E-D786A-S, E-D786A-V, E-D786S |
| Fleetrite | FLTH786, FLTH786A |
| Ford | 6C4Z2001AA, 8C4Z2001A, 8U9Z2001AB, LU9Z2001F, 4C4Z2001MA |
| Formula Blue Hydraulic Brake Parts | E10707861, E10907860, E11107861 |
| HALDEX | MQD786AHDC |
| International Harvester (IHC) | 2501841C93, ASL02040J2677 |
| International Harvester IHC | 2501841C91 |
| Inwood Automotive Products | TXD786A |
| KEM | PXD786A |
| MAGMA PRODUCTS | MSD786AM |
| Meritor | MD786A, MD786AM, MVD786A |
| Monroe Brakes | DX786A |
| Morse | MKD786A |
| Performance Friction | 0786.11, 0786.13, 0786.21, 786A4, 786AZ |
| PowerStop | Z36-786A |
| Wagner Brake | FD786A, MD786A, SX786A |
RAYBESTOS SP786ATRH Fits Vehicles
- Freightliner M2 T (2006-2010)
- Freightliner MCL (2011, 2014)
- Freightliner S2 (2007-2009, 2011)
- Freightliner S2G (2014-2022)
- Freightliner S2C (2013-2022)
- Freightliner MB Line (2007-2022)
- Freightliner MC Line (2001, 2005-2018)
- Freightliner B2 (2005-2018)
- Freightliner MT35 (2006-2009)
- Freightliner MT45 (2006-2021)
- Freightliner MT55 (2004-2019)
- Freightliner FS65 (1999-2008)
- Freightliner M2 (2005-2018)
- Freightliner M2 100 (2003-2010)
- Peterbilt 337 (2010-2012)
- Peterbilt 325 (2008-2012)
- International 4100 SBA (2006-2008)
- Freightliner Business Class M2 (2004-2012)
- International 4900 (1998-2005)
- International 4800 (1998-2003)
- International 4700LPX (1998-2002)
- International 4700LP (1998-2002)
- International 4700 (1998-2005, 2008)
- International 4400LP (2002-2009)
- International 4400 (2002-2009)
- International 4300LP (2002-2009)
- International 4300 (2002-2009)
- International 4200LP (2003-2008)
- International 4200 (2002-2009)
- International 4100 (2006-2009)
- International 3800 (1998-2004)
- International 3600 (1998-1999, 2001-2002)
- International 3400 (1998-2002)
- International 3000RE (1996-2000, 2002, 2005)
- International 3000IC (2000-2002)
- International 3000FE (1998-1999)
- International CXT (2006-2007)
- International 1652SC (1998-2005)
- International 3200 (2002-2009)
- International 3300 (2005-2009)
- Freightliner M2 112 (2003-2018)
- Kenworth T370 (2008-2018)
- Kenworth T170 (2008-2018)
- Kenworth T270 (2008-2018)
- Kenworth T300 (2000-2008)
- Kenworth K300 (2000-2005)
- Freightliner M2 106 (2003-2018)
- Peterbilt 335 (2008-2010)
- Peterbilt 330 (2008-2012)
- International 3000 (1998-2002)
- Ford F59 (2021)
- Fleetwood Bounder Anniversary Edition (2021)
- Fleetwood Southwind (2018-2020)
- Fleetwood Fortis (2021)
- Itasca Suncruiser (2013-2016)
- Forest River Georgetown GT7 (2020-2022)
- Fleetwood Bounder Classic (2013)
- Fleetwood Bounder (2010, 2017-2019, 2021-2022)
- Winnebago Suncruiser (2016)
- Winnebago Adventurer (2013-2017)
- IC Corporation RE Commercial (2003-2009)
- IC Corporation RE Integrated (2005)
- IC Corporation RE School Bus (2003-2009)
- Sterling Truck Acterra (2003-2008)
- Sterling Truck L7500 (2002-2006)
- IC Corporation CE School Bus (2003-2004)
- Ford F-59 Commercial Stripped Chassis (2011-2020)
- IC Corporation BE Commercial Bus (2008)
- IC Corporation BE School Bus (2008-2009)
- IC Corporation HC Integrated Commercial (2007-2009)
- IC Corporation CE Commercial (2003-2008)
- IC Corporation CE Integrated (2005-2009)
- Blue Bird TC2000 (1998-2004)
- Blue Bird TC1000 (1998-2000)
- Workhorse LF72 (2005-2009)
- Sterling Truck Acterra 7500 (2001-2007)
- Sterling Truck Acterra 6500 (2001-2007)
- Sterling Truck Acterra 5500 (2001-2007)
- Ford F-53 Motorhome Chassis (2008-2009, 2011-2022)
- Ford F-750 (2004-2008)
- Ford F-650 (2004-2008)
