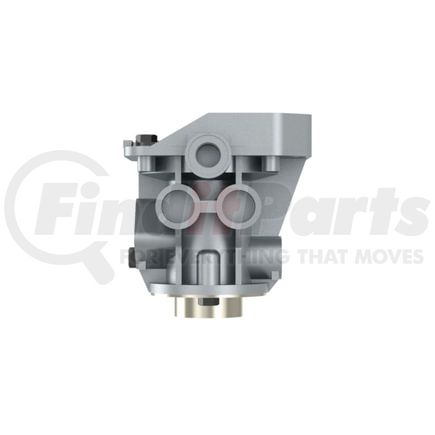

(888) 312-8812 Login SignupWABCO 9710023000 Air Brake Emergency Relay Valve
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WABCO 9710023000 Part Description
WABCO 9710023000 Specifications
Product Attributes
| Size | 126 x 161 x 137 |
| Max. operating pressure | 8.5 bar |
| Port thread 2 | 2x M22 x 1.5 JED - 152 |
| Weight | 3.2915 |
| Calculated Volume (dm³) | 2.779 |
| Temperature Range | -40°C to +80°C |
| Distance Between Holes | 71 mm |
| Type | Only Emergency valve |
| Adjustable Predominance | Adjustable: 0 to 1 bar |
| Mounting | 2x Ø 11.0 mm |
| Range Of Adjustment | 1 bar |
| Port thread 1 | M22 x 1.5 JED152 |
| Port thread 12 | M22 x 1.5 JED - 152 |
| Port thread 4 | M16 x 1.5 JED - 152 |
| Port thread 3 | Flap Exhaust |
WABCO 9710023000 Cross References
We have 10 alternatives for the 9710023000 by WABCO:
WABCO 9710023000 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
