(888) 312-8812 Login SignupDELPHI TC587 Ball Joint
Tap to view 15 more
MSRP: $42.95
$3249
Save $10.46
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5

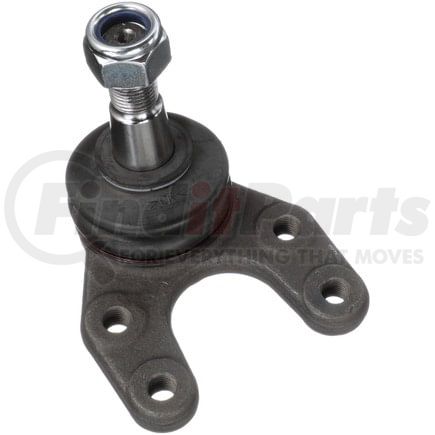

DELPHI TC587 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC587 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 4.094 IN |
| Maximum Outside Diameter | 104.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 90 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 0.984 IN |
| Mounting Bolt Length | 25.00 MM |
| Washers Included | No |
| Height | 4.134 IN |
| Height | 105.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.083 IN |
| Stud Thread Length | 27.5 MM |
| Wrench Size | 24mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 29.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.00 MM |
| Mounting Bolt Head Diameter | 0.748 IN |
| Mounting Bolt Head Diameter | 19.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 0.787 IN |
| Mounting Bolt Thread Length | 20.00 MM |
| Mounting Bolt Thread Diameter | 10.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.791 IN |
| Stud Tapered End 2 Diameter | 20.1 MM |
| Stud Tapered End 1 Diameter | 0.701 IN |
| Stud Tapered End 1 Diameter | 17.8 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 4.090 IN |
| Length | 104.00 MM |
| Mounting Bolt Thread Diameter | 0.390 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604272374 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC587 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-3709, 101-3892 |
| CORTECO | 49400861 |
| DORMAN | B9597, B9597PR |
| Import Direct | BJ07018 |
| MAS Industries | B9554, B9597 |
| MOOG | K9597 |
| MOOG Chassis Products | K9597 |
| Mazda | 8AU2-34-510 |
| Mevotech | MK9597, MS9682, MS9683 |
| N/A | XM343395AA, UH7134550, UB3999356, 3665782, GK9597, B9597PR |
| QUICK STEER | K9597 |
| TRW | JBJ439, JBJ440 |
DELPHI TC587 Fits Vehicles
- Mazda B2600 (1987-1993)
- Mazda B2200 (1987-1993)
- Mazda B2000 (1986-1987)
