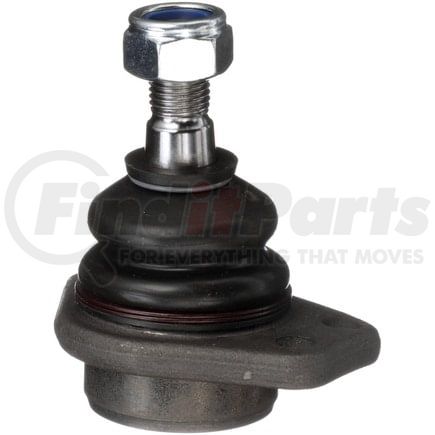

DELPHI TC327 - Ball Joint
$3099
MSRP: $40.89
Save: $9.90
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including Carbon black, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 3.504 IN |
| Maximum Outside Diameter | 89.0 MM |
| Color | Gray |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14.0 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 61.2 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| 3068 | 1.102 IN |
| Mounting Bolt Length | 28.0 MM |
| Washers Included | Yes |
| Height | 3.591 IN |
| Height | 91.2 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| 4966 | 0.748 IN |
| Stud Thread Length | 19.0 MM |
| 839 | 13.0mm |
| Stud Type | Threaded |
| Mounting Type | Bolt On |
| Distance Between Mounting Holes | 69.0 MM |
| Dust Boot Material | Choloroprene Rubber (CR) |
| 9202 | 0.315 IN |
| Mounting Bolt Shank Diameter | 8.0 MM |
| 9203 | 0.567 IN |
| Mounting Bolt Head Diameter | 14.4 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 0.984 IN |
| Mounting Bolt Thread Length | 25.0 MM |
| Mounting Bolt Thread Diameter | 12.0 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.669 IN |
| Stud Tapered End 2 Diameter | 17.0 MM |
| 9213 | 0.602 IN |
| Stud Tapered End 1 Diameter | 15.3 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 89.0 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604274057 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Toyota Van (1984-1989)
