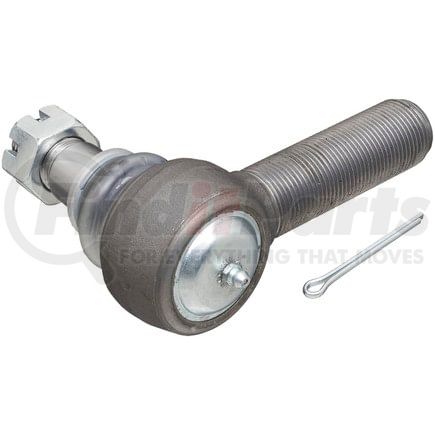

Need help? We're here!
(888) 312-8812 Login SignupDELPHI TA2547 Tie Rod End
Tap to view 7 more
$6399
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Jan 2
DELPHI TA2547 Part Description
DELPHI TA2547 Specifications
Product Attributes
| Position(s) | Right |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Width | 62 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 1.117 IN |
| End 2 Thread Diameter | 28.38 MM |
| Height | 126.50 MM |
| Housing Material | Steel |
| Tube Diameter | 1.125 IN |
| Tube Diameter | 28.38 MM |
| Adjustable | No |
| Weight | 3.04 lb |
| Cone Outside Diameter | 28.10 MM |
| Bearing Material | Steel |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| Length - Stud Center to End | 4.921 IN |
| Length - Stud Center to End | 125.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 12 |
| End 1 Threads Per Inch | 14 |
| End 1 Thread Diameter | 0.875 IN |
| End 1 Thread Diameter | 22.23 MM |
| Shank Length | 28.10 MM |
| Stud Length | 28.10 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 1.106 IN |
| Stud Length | 1.106 IN |
| Cone Outside Diameter | 1.106 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Country of Origin (Primary) | TR |
| Warranty Special UOM | LF |
| UPC | 00689604275009 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA2547 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | ES187R |
| Mevotech | MES373R |
| Chrysler | 1321101, 1643277 |
| General Motors | 2456811, 2467322, 3745390, 8875935 |
| Ford | B4TZ-3A130B, B5TZ-3A130A, C1TZ-3A130C, C8TZ-3A130A |
| TRW | JTE888 |
DELPHI TA2547 Fits Vehicles
- International 7100 (1990-1995)
- International 4900 (1990-2002)
- International 4800 (1990-2002)
- International 4700 (1990-2005)
- International 4600 (1990-1994)
- International 4200 (2002-2007)
- International 3800 (1987, 1990-1994)
- International 3700 (1990-1994)
- International 4300 (2002-2012)
- Ford LN7000 (1981-1986)
- Ford C8000 (1980-1989)
- Ford C800 (1980-1986)
- Ford C7000 (1980-1986)
- Ford C700 (1980-1986)
DELPHI TA2547 Customer Reviews
No reviews yet
Be the first to review this product!
