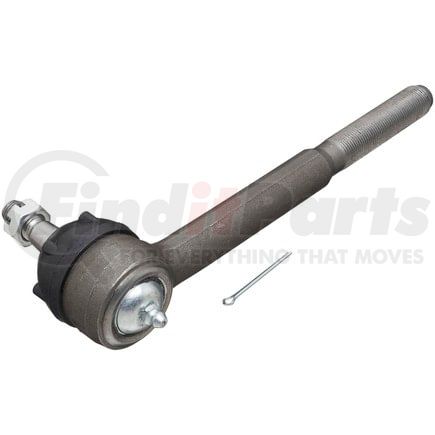

DELPHI TA2530 Part Description
DELPHI TA2530 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Width | 43 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.625 IN |
| End 2 Thread Diameter | 15.88 MM |
| Height | 91.50 MM |
| Housing Material | Steel |
| Tube Diameter | 0.787 IN |
| Tube Diameter | 20.00 MM |
| Adjustable | No |
| Weight | 1.36 lb |
| Cone Outside Diameter | 15.80 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| Length - Stud Center to End | 8.150 IN |
| Length - Stud Center to End | 207.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 20 |
| End 1 Thread Diameter | 0.437 IN |
| End 1 Thread Diameter | 11.11 MM |
| Shank Length | 15.80 MM |
| Stud Length | 15.80 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.622 IN |
| Stud Length | 0.622 IN |
| Cone Outside Diameter | 0.622 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604274873 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA2530 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | ES2226RL |
| Mevotech | MES2226RL |
| General Motors | 7837614 |
| MAS Industries | T2226 |
| TRW | JTE1360 |
| N/A | GES2226RL, T2226PR |
DELPHI TA2530 Fits Vehicles
- Pontiac Firebird (1982-1992)
- Chevrolet Camaro (1982-1992)
