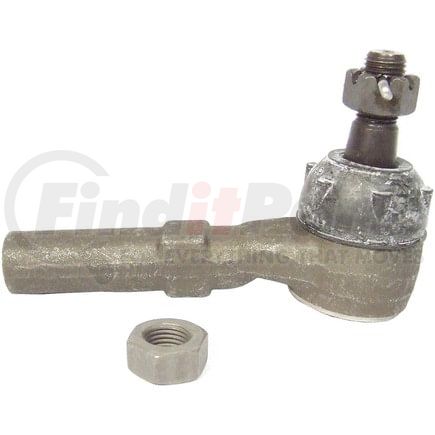

(888) 312-8812 Login SignupDELPHI TA2326 Tie Rod End
Tap to view 3 more
$4299
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Jan 7
DELPHI TA2326 Part Description
DELPHI TA2326 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Width | 44.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 100.50 MM |
| Housing Material | Steel |
| Tube Diameter | 0.866 IN |
| Tube Diameter | 22.00 MM |
| Adjustable | No |
| Weight | 1.69 lb |
| Cone Outside Diameter | 18.70 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 4.843 IN |
| Length - Stud Center to End | 123.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 18.70 MM |
| Stud Length | 18.70 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.736 IN |
| Stud Length | 0.736 IN |
| Cone Outside Diameter | 0.736 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604275405 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA2326 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | ES3302RL |
| Mevotech | MES3302RL |
| Ford | F5TZ 3A131-A, MEOE138 |
| MAS Industries | T3302 |
| TRW | JTE7044 |
| N/A | GES3302RL |
DELPHI TA2326 Fits Vehicles
- Mercury Mountaineer (1997)
- Ford Explorer (1995-1997)
