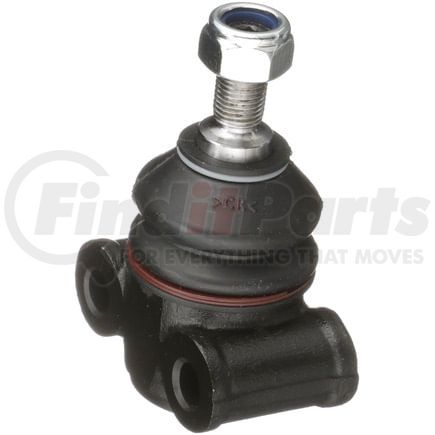

Delphi TC98 - Ball Joint
$3399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Upper |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 2.638 IN |
| Maximum Outside Diameter | 67.00 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 67 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 1.575 IN |
| Height | 40.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Stud Thread Length | 0.843 IN |
| Stud Thread Length | 21.4 MM |
| Stud Type | Threaded |
| Distance Between Mounting Holes | 44.50 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.681 IN |
| Stud Tapered End 2 Diameter | 17.3 MM |
| Stud Tapered End 1 Diameter | 0.756 IN |
| Stud Tapered End 1 Diameter | 19.2 MM |
| Stud Thread Pitch | 1.25 MM |
| Length | 93.00 MM |
| Length | 3.660 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604271254 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Jaguar XJ (1969-1971)
- Jaguar Mark X (1962-1966)
- Aston Martin DB6 (1965-1970)
- Aston Martin Vanquish (2002-2003)
- Aston Martin DB7 (2000-2004)
- Aston Martin Lagonda (1977-1988)
- Jaguar XJS (1976-1996)
- Jaguar XJR (1995-1997)
- Jaguar XJ12 (1994-1996)
- Jaguar XJ6 (1972-1997)
- Jaguar Vanden Plas (1986-1997)
