Item Grade	Standard Replacement
Position(s)	Front Upper
Material	Steel
Maximum Outside Diameter	1.949 IN
Maximum Outside Diameter	49.50 MM
Color	Black
Stud Thread Diameter	0.551 IN
Stud Thread Diameter	14 MM
Castle Nut Included	No
Grease Fitting Included	No
Suspension Grade Type	Standard
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	100 MM
Cotter Pin Included	No
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Mounting Bolt Length	1.437 IN
Mounting Bolt Length	36.50 MM
Washers Included	No
Height	3.874 IN
Height	98.40 MM
Nuts Included	Yes
Mounting Hole Quantity	3
Adjustable	No
Greaseable	No
Stud Thread Length	0.827 IN
Stud Thread Length	21 MM
Wrench Size	17mm
Stud Type	Threaded
Mounting Type	Bolt-In
Distance Between Mounting Holes	25.00 MM
Dust Boot Material	Rubber
Mounting Bolt Shank Diameter	0.394 IN
Mounting Bolt Shank Diameter	10.00 MM
Mounting Bolt Head Diameter	0.709 IN
Mounting Bolt Head Diameter	18.00 MM
Mounting Bolts Included	Yes
Mounting Bolt Thread Pitch	1.25 MM
Mounting Bolt Thread Length	1.181 IN
Mounting Bolt Thread Length	30.00 MM
Mounting Bolt Thread Diameter	10.00 MM
Mount Plate Included	No
Tapered Stud	Yes
Stud Tapered End 2 Diameter	0.787 IN
Stud Tapered End 2 Diameter	20 MM
Stud Tapered End 1 Diameter	0.693 IN
Stud Tapered End 1 Diameter	17.6 MM
Stud Thread Pitch	1.5 MM
Length	80.00 MM
Length	3.150 IN
Mounting Bolt Thread Diameter	0.390 IN

Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708807000
Country of Origin (Primary)	TR
UPC	00689604260746
VMRS Code	016001014
UNSPSC	25174203

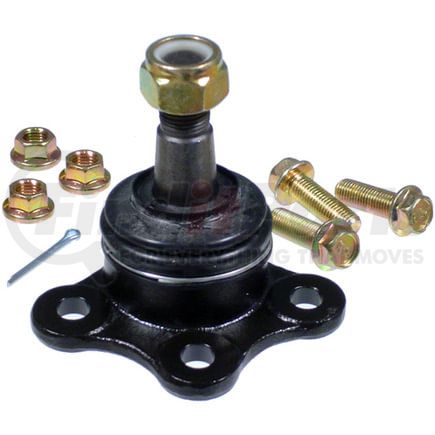

Delphi TC945 - Ball Joint

Ball Joint
