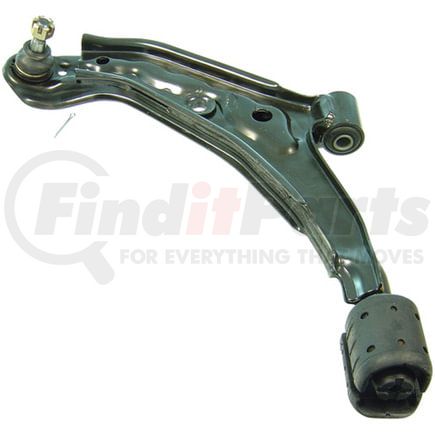

(888) 312-8812 Login SignupDELPHI TC853 Control Arm and Ball Joint Assembly
Tap to view 2 more
$8549
Limited availability at this price!
5 Day Lead Time
Get it by Thursday, Feb 12
DELPHI TC853 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC853 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.858 IN |
| Control Arm Maximum Width | 98.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 0.886 IN |
| Ball Joint Stud Length | 22.50 MM |
| Control Arm Maximum Length | 17.283 IN |
| Control Arm Maximum Length | 439.00 MM |
| Mounting Hole Diameter | 0.591 IN |
| Mounting Hole Diameter | 15.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604260395 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC853 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5161, 102-5161 |
| CORTECO | 49399681 |
| DORMAN | CB30421, CB30421PR |
| Datsun/Nissan | 54501-0M010, 54501-0M020, 54501-0M060 |
| Dorman | 520-523 |
| MAS Industries | CB30421, CB30421PR |
| MOOG Chassis Products | CK620356, K620356, RK620356 |
| Mevotech | CMS3062, MS3062 |
| N/A | 54501-4B000, GS3062, 623.40018 |
| TRW | JTC581 |
DELPHI TC853 Fits Vehicles
- Nissan Sentra (1995-1999)
- Nissan 200SX (1995-1998)
