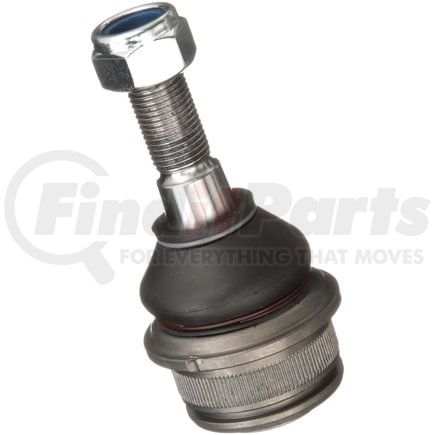

DELPHI TC526 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC526 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 1.752 IN |
| Maximum Outside Diameter | 44.50 MM |
| Color | Gray |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 51.2 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.898 IN |
| Height | 99.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.984 IN |
| Stud Thread Length | 25 MM |
| Stud Type | Threaded |
| Distance Between Mounting Holes | 70.00 MM |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.874 IN |
| Stud Tapered End 2 Diameter | 22.2 MM |
| Stud Tapered End 1 Diameter | 0.726 IN |
| Stud Tapered End 1 Diameter | 18.45 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 88.00 MM |
| Length | 3.460 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604259689 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC526 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4305 |
| CORTECO | 49395305 |
| DORMAN | B9915, 532-959, B9915PR |
| Import Direct | BJ06086 |
| MAS Industries | B9915 |
| MEYLE | 1160100038, 1160107192/HD |
| MOOG Chassis Products | K500097 |
| Mcquay-Norris | FA2143 |
| Mevotech | MK9915 |
| N/A | 532-959, GK9915, B9915PR |
| Raybestos Chassis | 500-1095 |
| TRW | JBJ268 |
| Volkswagen | 701 407 187, 701 407 187 B, 701 407 187A |
DELPHI TC526 Fits Vehicles
- Volkswagen Transporter (1992-1994)
- Volkswagen EuroVan (1993-1997, 1999-2003)
