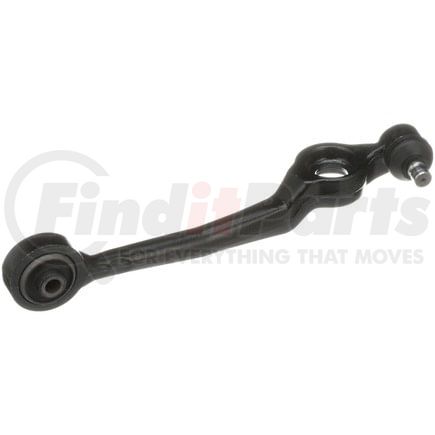

(888) 312-8812 Login SignupDELPHI TC504 Control Arm and Ball Joint Assembly
Tap to view 23 more
MSRP: $103.25
$6399
Save $39.26
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
DELPHI TC504 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC504 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Grooved |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 4.724 IN |
| Control Arm Maximum Width | 120.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 19.0 MM |
| Ball Joint Stud Length | 50.00 MM |
| Control Arm Maximum Length | 17.874 IN |
| Control Arm Maximum Length | 454.00 MM |
| Mounting Hole Diameter | 15.00 MM |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Stud Length | 1.969 IN |
| Mounting Hole Diameter | 0.591 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604259542 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC504 Cross References
| Brand | Part Number |
|---|---|
| Audi | 4A0 407 151 |
| Beck/Arnley | 101-4297, 101-4342, 102-4297 |
| CORTECO | 49398931 |
| DORMAN | CB12013, CB12013PR |
| Dorman | 520-717 |
| MAS Industries | CB12013, CB12013PR, SL90665 |
| MEYLE | 1160508200/HD |
| MOOG | RK90665 |
| MOOG Chassis Products | CK90665, K90665, RK90665 |
| Mevotech | CMK90666, MS9721 |
| N/A | 4A0407158B, GK90666 |
| TRW | JTC254 |
| VAICO | V10 7017 |
DELPHI TC504 Fits Vehicles
- Audi S6 (1995-1997)
- Audi A6 (1995-1997)
- Audi A6 Quattro (1995-1998)
- Audi S4 (1992-1994)
- Audi 100 Quattro (1992-1994)
- Audi 100 (1992-1994)
