Item Grade	Standard Replacement
Position(s)	Front Lower, Rear Lower. For the position specific to your vehicle, refer to the Applications.
Material	Steel
Maximum Outside Diameter	1.685 IN
Maximum Outside Diameter	42.80 MM
Color	Gray
Stud Thread Diameter	0.551 IN
Stud Thread Diameter	14 MM
Castle Nut Included	Yes
Grease Fitting Included	No
Suspension Grade Type	Standard
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	47.5 MM
Cotter Pin Included	Yes
Cotter Pin Hole	Yes
Mounting Hardware Included	Yes
3068	1.496 IN
Mounting Bolt Length	38.00 MM
Washers Included	No
Height	3.386 IN
Height	86.00 MM
Nuts Included	Yes
Mounting Hole Quantity	2
Adjustable	No
Greasable	No
4966	0.654 IN
Stud Thread Length	16.6 MM
839	19mm
Stud Type	Threaded
Mounting Type	Bolt-In
Distance Between Mounting Holes	82.00 MM
Dust Boot Material	Rubber
9202	0.472 IN
Mounting Bolt Shank Diameter	12.00 MM
9203	0.827 IN
Mounting Bolt Head Diameter	21.00 MM
Mounting Bolts Included	Yes
Mounting Bolt Thread Pitch	1.25 MM
9207	1.181 IN
Mounting Bolt Thread Length	30.00 MM
Mounting Bolt Thread Diameter	12.00 MM
Mount Plate Included	No
Tapered Stud	Yes
9212	0.709 IN
Stud Tapered End 2 Diameter	18 MM
9213	0.63 IN
Stud Tapered End 1 Diameter	16 MM
Stud Thread Pitch	1.5 MM
Length	108.00 MM
Length	4.250 IN
Mounting Bolt Thread Diameter	0.470 IN

Harmonized Tariff Code (Schedule B)	8708807000
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604259382
VMRS Code	016001015
UNSPSC	25174203

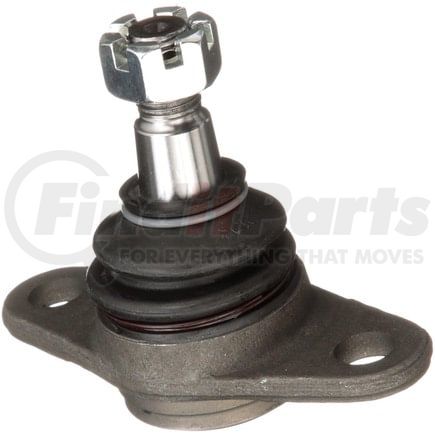

Delphi TC407 - Ball Joint

Ball Joint
