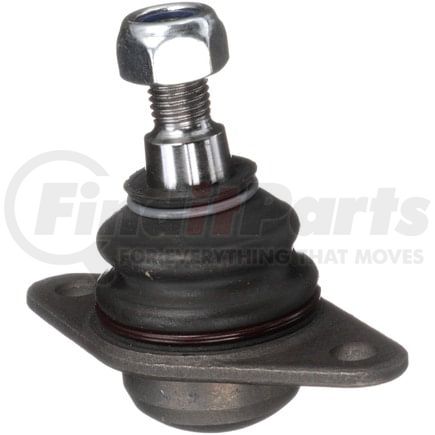

(888) 312-8812 Login SignupDELPHI TC350 Ball Joint
Tap to view 17 more
$2699
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
DELPHI TC350 Part Description
DELPHI TC350 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Lower |
| Material | Steel |
| Maximum Outside Diameter | 3.543 IN |
| Maximum Outside Diameter | 90.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 90 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.193 IN |
| Mounting Bolt Length | 30.30 MM |
| Washers Included | No |
| Height | 3.102 IN |
| Height | 78.80 MM |
| Nuts Included | No |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.677 IN |
| Stud Thread Length | 17.2 MM |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 70.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.315 IN |
| Mounting Bolt Shank Diameter | 8.00 MM |
| Mounting Bolt Head Diameter | 0.591 IN |
| Mounting Bolt Head Diameter | 15.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 0.984 IN |
| Mounting Bolt Thread Length | 25.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.728 IN |
| Stud Tapered End 2 Diameter | 18.5 MM |
| Stud Tapered End 1 Diameter | 0.622 IN |
| Stud Tapered End 1 Diameter | 15.8 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 90.00 MM |
| Length | 3.540 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604259252 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC350 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | K90696 |
| Mevotech | MK90696 |
| Audi | 857 505 365 |
DELPHI TC350 Fits Vehicles
- Audi 4000 Quattro (1985-1987)
- Audi 90 (1988-1989)
- Audi 80 (1988-1989)
- Audi Quattro (1983-1986)
- Audi 90 Quattro (1988-1989)
- Audi 80 Quattro (1988-1989)
DELPHI TC350 Customer Reviews
No reviews yet
Be the first to review this product!
