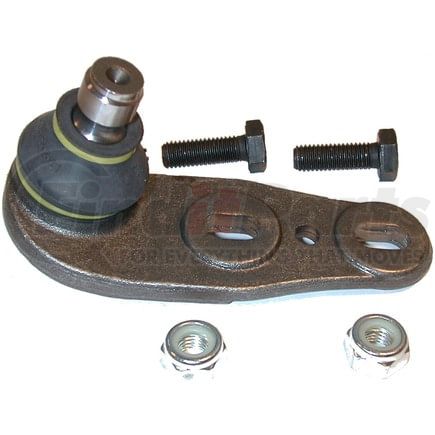

(888) 312-8812 Login SignupDELPHI TC348 Ball Joint
Tap to view 2 more
MSRP: $18.11
$1749
Save $0.62
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
DELPHI TC348 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC348 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.224 IN |
| Maximum Outside Diameter | 56.50 MM |
| Color | Black |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 56.5 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.181 IN |
| Mounting Bolt Length | 30.00 MM |
| Washers Included | Yes |
| Height | 2.642 IN |
| Height | 67.10 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Wrench Size | 17mm |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 48.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.00 MM |
| Mounting Bolt Head Diameter | 0.787 IN |
| Mounting Bolt Head Diameter | 20.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Length | 1.181 IN |
| Mounting Bolt Thread Length | 30.00 MM |
| Mounting Bolt Thread Diameter | 10.00 MM |
| Mount Plate Included | Yes |
| Mounting Bolt Thread Diameter | 0.390 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604259238 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC348 Cross References
| Brand | Part Number |
|---|---|
| Audi | 855 407 365 A, 855 407 365 B |
| Beck/Arnley | 101-4007 |
| CORTECO | 49401083 |
| DORMAN | B90500, 536-718, B90500PR |
| Import Direct | BJ04005 |
| MAS Industries | B90500, SL90500 |
| MEYLE | 1160103917 |
| MOOG | K90500 |
| MOOG Chassis Products | K90500 |
| Mcquay-Norris | FA1659 |
| Mevotech | MK9348 |
| N/A | GK9348, B90500PR |
| Raybestos Chassis | 505-1113 |
| TRW | JBJ114 |
| Volkswagen | 855 407 365 A, 855 407 365 B |
DELPHI TC348 Fits Vehicles
- Audi 4000 Quattro (1986-1987)
- Audi 90 (1988)
- Audi 90 Quattro (1988)
- Audi 80 (1988)
- Audi 80 Quattro (1988)
- Volkswagen Quantum (1983-1988)
- Audi 4000 (1983-1987)
- Audi Coupe (1983-1987)
