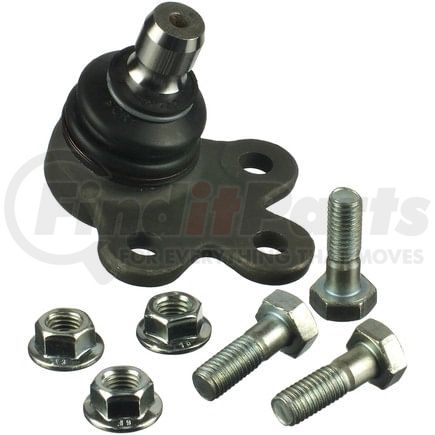

DELPHI TC2835 - Ball Joint
$2349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including Carbon black, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front, Front Lower. For the position specific to your vehicle, refer to the Applications. |
| Material | Steel |
| Maximum Outside Diameter | 2.028 IN |
| Maximum Outside Diameter | 51.5 MM |
| Color | Black |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 107.8 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| 3068 | 1.535 IN |
| Mounting Bolt Length | 39.0 MM |
| Washers Included | No |
| Height | 2.827 IN |
| Height | 71.8 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| Mounting Type | Bolt On |
| Dust Boot Material | Choloroprene Rubber (CR) |
| 9202 | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.0 MM |
| 9203 | 0.878 IN |
| Mounting Bolt Head Diameter | 22.3 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 1.181 IN |
| Mounting Bolt Thread Length | 30.0 MM |
| Mounting Bolt Thread Diameter | 10.0 MM |
| Mount Plate Included | No |
| Tapered Stud | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604269305 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Buick Encore (2013-2021)
- Chevrolet Trax (2013-2021)
- Chevrolet Sonic (2012-2018)
