DELPHI TC280 Part Description
Manufacturer
Product Description

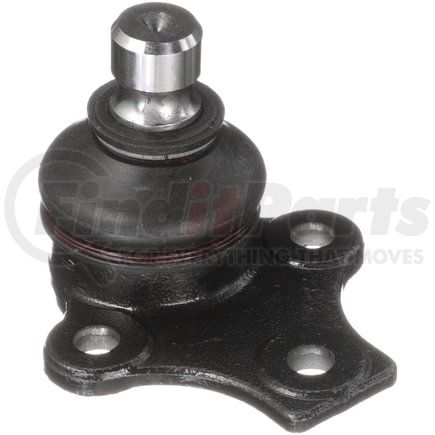

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC280 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.795 IN |
| Maximum Outside Diameter | 71.00 MM |
| Color | Black |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 71 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 0.984 IN |
| Mounting Bolt Length | 25.00 MM |
| Washers Included | Yes |
| Height | 2.563 IN |
| Height | 65.10 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Wrench Size | 13mm |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 52.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.315 IN |
| Mounting Bolt Shank Diameter | 8.00 MM |
| Mounting Bolt Head Diameter | 0.630 IN |
| Mounting Bolt Head Diameter | 16.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 0.984 IN |
| Mounting Bolt Thread Length | 25.00 MM |
| Mounting Bolt Thread Diameter | 8.00 MM |
| Mount Plate Included | Yes |
| Length | 78.00 MM |
| Length | 3.070 IN |
| Mounting Bolt Thread Diameter | 0.310 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604258682 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC280 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-3825 |
| CORTECO | 49401177 |
| DORMAN | B9601, B9601PR, 536-961 |
| Import Direct | BJ06110 |
| MAS Industries | B9601 |
| MEYLE | 1160107108 |
| MOOG Chassis Products | K9601 |
| Mevotech | MK9601 |
| N/A | GK9601, 606.66001, MK9603 |
| TRW | JBJ236 |
| VAICO | V10-7035-1 |
| Volkswagen | 191 407 365, 191 407 365 B, 191 407 365A |
DELPHI TC280 Fits Vehicles
- Volkswagen Golf (1985-1988)
- Volkswagen Jetta (1985-1988)
