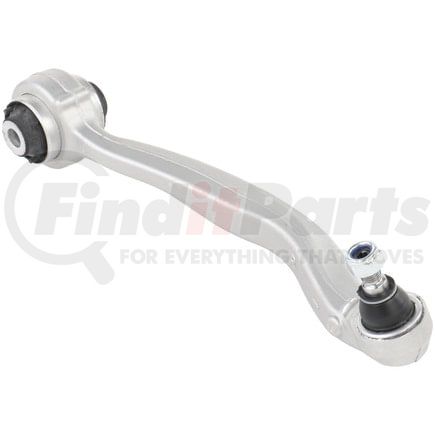

(888) 312-8812 Login SignupDELPHI TC2358 Control Arm and Ball Joint Assembly
Tap to view 23 more
$12399
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 30
DELPHI TC2358 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2358 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower, Front Right Lower Rearward. For the position specific to your vehicle, refer to the Applications. |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.898 IN |
| Control Arm Maximum Width | 99.00 MM |
| Control Arm Color | Gray |
| Ball Joint Stud Length | 2.756 IN |
| Ball Joint Stud Length | 70.00 MM |
| Control Arm Maximum Length | 16.102 IN |
| Control Arm Maximum Length | 409.00 MM |
| Mounting Hole Diameter | 0.594 IN |
| Mounting Hole Diameter | 15.10 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604257142 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC2358 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6899, 102-6899 |
| CORTECO | 49398642 |
| DORMAN | CB28124, 521-284, CB28124PR |
| MAS Industries | CB28124 |
| MEVOTECH | CMS101187 |
| MEYLE | 0146100013, 0146100062, 016 050 0067, 0160500092HD |
| MOOG Chassis Products | K620980, K621155, RK620980, RK621155 |
| Mercedes-Benz | 204 330 32 11, 204 330 68 11, A204 330 3211, A204 330 6811 |
| Mevotech | CMS101070, MS101187 |
| N/A | CK621155, 521-284, CB28124PR |
| TRW | JTC1451 |
| VAICO | V30 7552 1 |
DELPHI TC2358 Fits Vehicles
- Mercedes-Benz SLC300 (2018-2020)
- Mercedes-Benz SLK300 (2016)
- Mercedes-Benz E400 (2015-2018)
- Mercedes-Benz E250 (2014)
- Mercedes-Benz SLK250 (2012-2015)
- Mercedes-Benz SLK55 AMG (2011-2016)
- Mercedes-Benz SLK350 (2011-2016)
- Mercedes-Benz C250 (2010-2015)
- Mercedes-Benz E550 (2010-2017)
- Mercedes-Benz E350 (2010-2014)
- Mercedes-Benz C230 (2008-2009)
- Mercedes-Benz C350 (2008-2015)
- Mercedes-Benz C300 (2008-2011)
