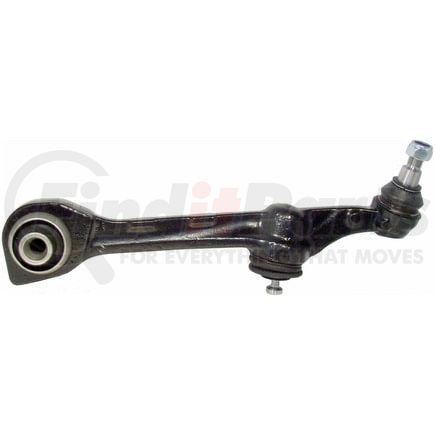

(888) 312-8812 Login SignupDELPHI TC2334 Control Arm and Ball Joint Assembly
Tap to view 2 more
$16749
Limited availability at this price!
In Stock
Get it by Friday, Feb 20
DELPHI TC2334 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2334 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 80.00 MM |
| Control Arm Maximum Width | 3.150 IN |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 70.00 MM |
| Control Arm Maximum Length | 415.00 MM |
| Control Arm Maximum Length | 16.339 IN |
| Mounting Hole Diameter | 14.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 2.756 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604257029 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC2334 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-7056, 102-7056 |
| CORTECO | 49399600 |
| DORMAN | 522-244, CB28334, CB28334PR |
| MAS Industries | CB28334 |
| MEYLE | 016 050 0069 |
| MOOG | RK621922 |
| MOOG Chassis Products | CK621764, K621764, RK621764 |
| Mercedes-Benz | 221 330 68 07, 221 330 82 07, A221 330 6807, A221 330 8207 |
| Mevotech | CMS101206 |
| N/A | CB28334PR, 522-244 |
| URO | 2213308207 |
| VAICO | V30-7628 |
DELPHI TC2334 Fits Vehicles
- Mercedes-Benz S400 (2010-2013)
- Mercedes-Benz S65 AMG (2007-2013)
- Mercedes-Benz S63 AMG (2008-2013)
- Mercedes-Benz S600 (2007-2013)
- Mercedes-Benz S550 (2007-2013)
