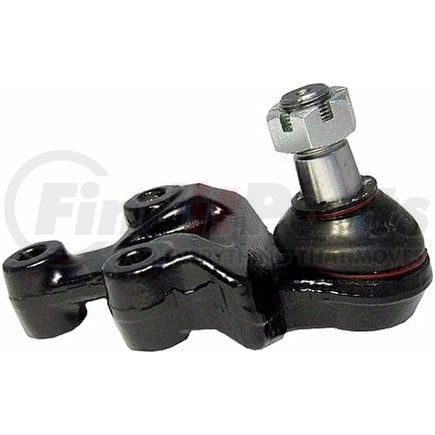

(888) 312-8812 Login SignupDELPHI TC2117 Ball Joint
Tap to view 2 more
MSRP: $49.42
$4849
Save $0.93
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 30
DELPHI TC2117 Part Description
DELPHI TC2117 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 4.016 IN |
| Maximum Outside Diameter | 102.00 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 102 MM |
| Type | Premium |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 3.102 IN |
| Mounting Bolt Length | 78.80 MM |
| Washers Included | Yes |
| Height | 3.937 IN |
| Height | 100.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.807 IN |
| Stud Thread Length | 20.5 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 66.00 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 1.181 IN |
| Mounting Bolt Shank Diameter | 30.00 MM |
| Mounting Bolt Head Diameter | 0.965 IN |
| Mounting Bolt Head Diameter | 24.50 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Length | 1.339 IN |
| Mounting Bolt Thread Length | 34.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.85 IN |
| Stud Tapered End 2 Diameter | 21.6 MM |
| Stud Tapered End 1 Diameter | 0.945 IN |
| Stud Tapered End 1 Diameter | 24 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 175.00 MM |
| Length | 6.890 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604255636 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC2117 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5147 |
| Raybestos Chassis | 505-1334 |
| MOOG Chassis Products | K500032 |
| Mcquay-Norris | FA2252 |
| Mevotech | MK500032 |
| Deeza | KI-F201 |
| Kia | 54570-3E000, 54570-3E001 |
| MAS Industries | B90384, B90384PR, BJ63075 |
| Import Direct | BJ11009 |
| TRW | JBJ506 |
| N/A | BJ63075XL |
DELPHI TC2117 Fits Vehicles
- Kia Sorento (2003-2009)
