Item Grade	Standard Replacement
Position(s)	Front Lower Rearward
Material	Steel
Maximum Outside Diameter	3.543 IN
Maximum Outside Diameter	90.00 MM
Color	Black
Stud Thread Diameter	0.551 IN
Stud Thread Diameter	14 MM
Castle Nut Included	No
Grease Fitting Included	No
Suspension Grade Type	Standard
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	45 MM
Cotter Pin Included	No
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Mounting Bolt Length	1.043 IN
Mounting Bolt Length	26.50 MM
Washers Included	Yes
Height	3.413 IN
Height	86.70 MM
Nuts Included	Yes
Mounting Hole Quantity	2
Adjustable	No
Greaseable	No
Stud Thread Length	0.866 IN
Stud Thread Length	22 MM
Wrench Size	21mm
Stud Type	Threaded
Mounting Type	Bolt-In
Distance Between Mounting Holes	70.00 MM
Dust Boot Material	Rubber
Mounting Bolt Shank Diameter	0.394 IN
Mounting Bolt Shank Diameter	10.00 MM
Mounting Bolt Head Diameter	0.689 IN
Mounting Bolt Head Diameter	17.50 MM
Mounting Bolts Included	Yes
Mounting Bolt Thread Pitch	1.5 MM
Mounting Bolt Thread Length	0.787 IN
Mounting Bolt Thread Length	20.00 MM
Mounting Bolt Thread Diameter	10.00 MM
Mount Plate Included	No
Tapered Stud	Yes
Stud Tapered End 2 Diameter	0.799 IN
Stud Tapered End 2 Diameter	20.3 MM
Stud Tapered End 1 Diameter	0.701 IN
Stud Tapered End 1 Diameter	17.8 MM
Stud Thread Pitch	1.5 MM
Length	90.00 MM
Length	3.540 IN
Mounting Bolt Thread Diameter	0.390 IN

Harmonized Tariff Code (Schedule B)	8708807000
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604255353
VMRS Code	016001015
UNSPSC	25174203

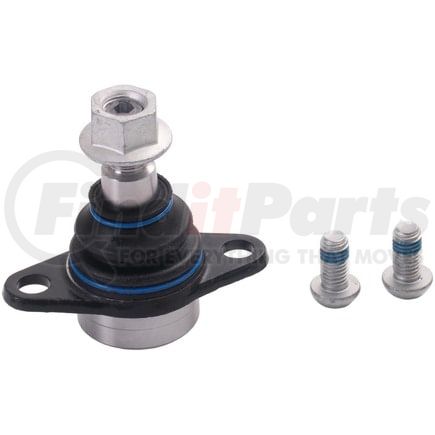

Delphi TC2064 - Ball Joint

Ball Joint
