(888) 312-8812 Login SignupDELPHI TC1822 Control Arm and Ball Joint Assembly
Tap to view 2 more
MSRP: $128.09
$7399
Save $54.10
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
DELPHI TC1822 Part Description
Manufacturer
Product Description

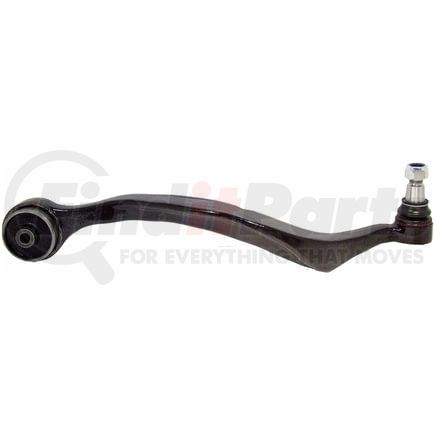

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1822 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 4.646 IN |
| Control Arm Maximum Width | 118.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 16.00 MM |
| Ball Joint Stud Length | 70.00 MM |
| Control Arm Maximum Length | 20.079 IN |
| Control Arm Maximum Length | 510.00 MM |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 16.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.630 IN |
| Ball Joint Stud Length | 2.756 IN |
| Thread Diameter | 0.630 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604254103 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1822 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5532, 102-5532 |
| CORTECO | 49399135 |
| DORMAN | CB65044, CB65044PR |
| Deeza | MD-H208 |
| Dorman | 520-890 |
| Ford | GJ6A-34-J00B, GP9A-34-J00C, GR1A-34-J00 |
| MAS Industries | CB65043, CB65044, CB65044PR |
| MOOG Chassis Products | CK620277, K620277, K620493, RK620277, RK620493, 102-5532 |
| Mazda | GJ6A-34-J00B, GJ6A-34-J00C, GJ6A-34-J00D, GP9A-34-J00C, GR1A-34-J00 |
| Mcquay-Norris | FA4489 |
| Mevotech | CMS76106, MS76106 |
| N/A | RK621250, GS76106, JTC2149, CK620493, 623.61062 |
| Raybestos Chassis | 507-1362 |
| TRW | JTC3769 |
DELPHI TC1822 Fits Vehicles
- Lincoln MKZ (2007-2010)
- Lincoln Zephyr (2006)
- Mercury Milan (2006-2011)
- Ford Fusion (2006-2012)
- Mazda 6 (2003-2008)
