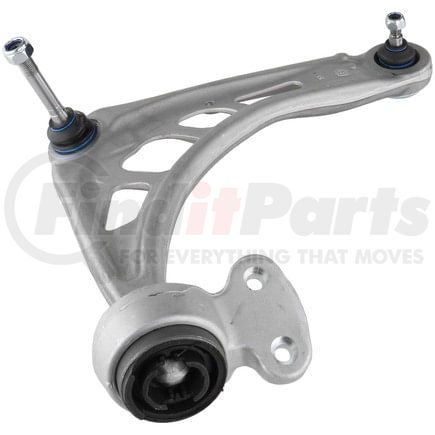

(888) 312-8812 Login SignupDELPHI TC1728 Control Arm and Ball Joint Assembly
Tap to view 20 more
$16649
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Jun 24
DELPHI TC1728 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1728 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 6.654 IN |
| Control Arm Maximum Width | 169.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 1.024 IN |
| Ball Joint Stud Length | 26.00 MM |
| Control Arm Maximum Length | 15.591 IN |
| Control Arm Maximum Length | 396.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604253540 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1728 Cross References
| Brand | Part Number |
|---|---|
| BMW | 31 12 6 774 820, 3112 1094 466, 3112 1096 986, 3112 6750 224, 3112 6752 718, 3112 6758 520, 3112 6770 248, 3112 6777 852 |
| Beck/Arnley | 101-5108, 101-6091, 101-6440, 102-5108 |
| CORTECO | 49398622, 49398440 |
| DORMAN | CB14044, CB14384, 526-938, CB14044PR, CB14384PR |
| Deeza | BW-H107 |
| Dorman | 520-920 |
| MAS Industries | CA81085, CB14044, CB14384 |
| MEYLE | 3160500004/HD, 3160500000/HD |
| MOOG Chassis Products | K80528, RK80528 |
| Mcquay-Norris | FA4406 |
| Mevotech | CMK80528, MK80528, MS20319 |
| N/A | 31126758520S, GK80528, 623.34036, 31126751318 |
| TRW | JTC1070 |
| VAICO | V20-0294 |
DELPHI TC1728 Fits Vehicles
- BMW 320i (2001-2005)
- BMW Z4 (2003-2008)
- BMW 330i (2001-2005)
- BMW 330Ci (2001-2006)
- BMW 328i (1999-2000)
- BMW 328Ci (2000)
- BMW 325i (2001-2005)
- BMW 325Ci (2001-2006)
- BMW 323i (1999-2000)
