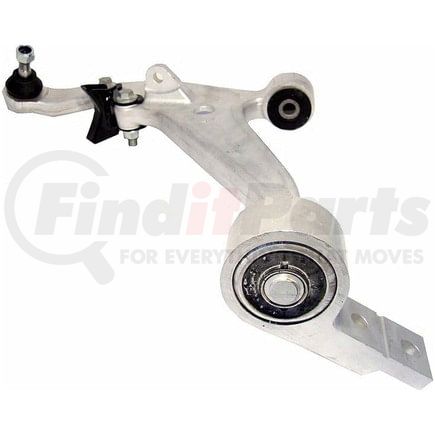

(888) 312-8812 Login SignupDELPHI TC1535 Control Arm and Ball Joint Assembly
Tap to view 2 more
MSRP: $316.78
$25699
Save $59.79
Limited availability at this price!
In Stock
Get it by Monday, Dec 29
DELPHI TC1535 Part Description
DELPHI TC1535 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Greaseable | No |
| Control Arm Maximum Width | 6.024 IN |
| Control Arm Maximum Width | 153.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 0.945 IN |
| Ball Joint Stud Length | 24.00 MM |
| Control Arm Maximum Length | 19.134 IN |
| Control Arm Maximum Length | 486.00 MM |
| Mounting Hole Diameter | 0.492 IN |
| Mounting Hole Diameter | 12.50 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604253083 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1535 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-7590 |
| MOOG Chassis Products | CK621726, K621726, RK621726 |
| Mevotech | CMS30106, MS30106 |
| Datsun/Nissan | 54501-8H310 |
| MAS Industries | CB69153 |
| Dorman | 52-1577 |
| N/A | CB69153PR, JTC2890, GS30106 |
DELPHI TC1535 Fits Vehicles
- Nissan X-Trail (2005-2006)
