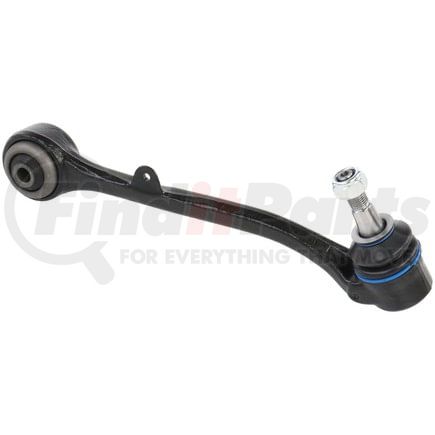

(888) 312-8812 Login SignupDELPHI TC1482 Control Arm and Ball Joint Assembly
Tap to view 23 more
MSRP: $96.00
$7999
Save $16.01
Limited availability at this price!
In Stock
Get it by Friday, Feb 20
DELPHI TC1482 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1482 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 2.165 IN |
| Control Arm Maximum Width | 55.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 83.00 MM |
| Control Arm Maximum Length | 13.780 IN |
| Control Arm Maximum Length | 350.00 MM |
| Mounting Hole Diameter | 12.10 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 3.268 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.476 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252703 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1482 Cross References
| Brand | Part Number |
|---|---|
| BMW | 31 10 3 415 028, 3110 3412 136, 3110 3418 338, 3110 3426 434, 3110 3451 882, 31122229522 |
| Beck/Arnley | 101-6161, 102-6161 |
| CORTECO | 49399359 |
| DORMAN | CB14204, CB14204PR |
| Deeza | BW-H240 |
| Dorman | 520-556 |
| MAS Industries | CB14204, CB14204PR |
| MEYLE | 3160500107HD, 3160500016/HD |
| MOOG | RK620184 |
| MOOG Chassis Products | K620184, RK620184, 102-6161 |
| Mcquay-Norris | FA4557 |
| Mevotech | CMS10107, MS10107 |
| N/A | GS10107, CK620184, 622.34053 |
| Raybestos Chassis | 507-1414 |
| TRW | JTC1127 |
| VAICO | V202833 |
DELPHI TC1482 Fits Vehicles
- BMW X3 (2004-2008)
DELPHI TC1482 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TC1482 Questions & Answers
No questions yet
Be the first to ask a question about this product!
