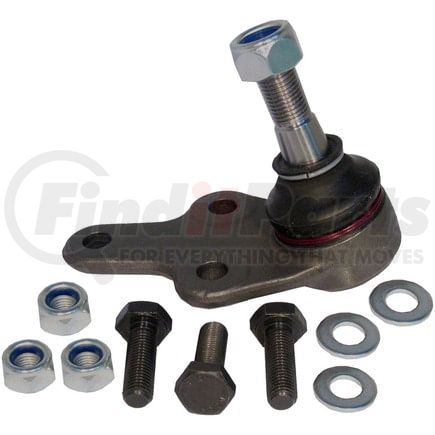

(888) 312-8812 Login SignupDELPHI TC1433 Ball Joint
Tap to view 2 more
MSRP: $31.31
$2849
Save $2.82
Limited availability at this price!
In Stock
Get it by Monday, Dec 29
DELPHI TC1433 Part Description
DELPHI TC1433 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 3.622 IN |
| Maximum Outside Diameter | 92.00 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 92 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.433 IN |
| Mounting Bolt Length | 36.40 MM |
| Washers Included | Yes |
| Height | 2.756 IN |
| Height | 70.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.063 IN |
| Stud Thread Length | 27 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 45.00 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 0.413 IN |
| Mounting Bolt Shank Diameter | 10.50 MM |
| Mounting Bolt Head Diameter | 0.772 IN |
| Mounting Bolt Head Diameter | 19.60 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 1.181 IN |
| Mounting Bolt Thread Length | 30.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.591 IN |
| Stud Tapered End 2 Diameter | 15 MM |
| Stud Tapered End 1 Diameter | 0.744 IN |
| Stud Tapered End 1 Diameter | 18.9 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 120.00 MM |
| Length | 4.720 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252451 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1433 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | K80992 |
| Mevotech | MK80992 |
| Deeza | VL-F203 |
| Ford | 1234382 |
| MAS Industries | BJ86055 |
| TRW | JBJ740 |
| Volvo | 312774623, 312774631, 312774649, 312774656 |
| N/A | 1234382, 3M513K209AA, BJ45195, BJ45195PR, K500393 |
DELPHI TC1433 Fits Vehicles
- Volvo V50 (2005-2006)
- Volvo C30 (2008-2013)
- Volvo C70 (2006-2013)
- Volvo S40 (2004-2011)
