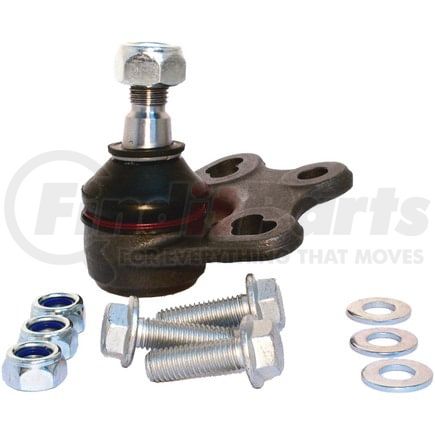

(888) 312-8812 Login SignupDELPHI TC1430 Ball Joint
Tap to view 2 more
MSRP: $31.51
$2599
Save $5.52
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 30
DELPHI TC1430 Part Description
DELPHI TC1430 Specifications
Product Attributes
| Position(s) | Front Lower Outer |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 3.661 IN |
| Maximum Outside Diameter | 93.00 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 93 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.543 IN |
| Mounting Bolt Length | 39.20 MM |
| Washers Included | Yes |
| Height | 3.110 IN |
| Height | 79.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.591 IN |
| Stud Thread Length | 15 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 75.40 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 0.402 IN |
| Mounting Bolt Shank Diameter | 10.20 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Length | 1.181 IN |
| Mounting Bolt Thread Length | 30.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.61 IN |
| Stud Tapered End 2 Diameter | 15.5 MM |
| Stud Tapered End 1 Diameter | 0.719 IN |
| Stud Tapered End 1 Diameter | 18.25 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 100.00 MM |
| Length | 3.940 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252444 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1430 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-7722 |
| MOOG Chassis Products | K500258 |
| Mercedes-Benz | 169 333 01 27, A169 333 0127 |
| MAS Industries | BJ28335 |
| TRW | JBJ786 |
DELPHI TC1430 Fits Vehicles
- Mercedes-Benz B200 (2006-2011)
DELPHI TC1430 Customer Reviews
No reviews yet
Be the first to review this product!
