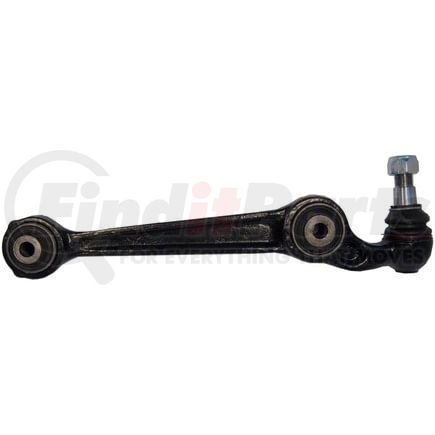

Delphi TC1411 - Control Arm and Ball Joint Assembly
$6249
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 2.283 IN |
| Control Arm Maximum Width | 58.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 16.00 MM |
| Ball Joint Stud Length | 70.00 MM |
| Control Arm Maximum Length | 14.173 IN |
| Control Arm Maximum Length | 360.00 MM |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 16.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.630 IN |
| Ball Joint Stud Length | 2.756 IN |
| Thread Diameter | 0.630 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252314 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
- Beck/Arnley 101-5531
- Beck/Arnley 102-5531
- MOOG Chassis Products K620815
- MOOG Chassis Products RK620148
- MOOG Chassis Products RK620815
- Mevotech CMS76104
- Mevotech MS76104
- Deeza MD-H206
- Ford GJ6A-34-300C
- Mazda GA6A-34-300B
- Mazda GJ6A-34-300B
- Mazda GJ6A-34-300C
- Mazda GJ6A-34-300D
- Mazda GJ6A-34-300E
- MAS Industries CB65045
- MAS Industries CB65045PR
- MAS Industries CB85125
- Dorman 520-809
- MOOG Chassis Products 102-5531
- TRW JTC7564
- 6M8Z-3078-A
- GS76104
- CK620815
Fits Vehicles
- Lincoln MKZ (2007)
- Lincoln Zephyr (2006)
- Mercury Milan (2006-2007)
- Ford Fusion (2006-2007)
- Mazda 6 (2003-2008)
