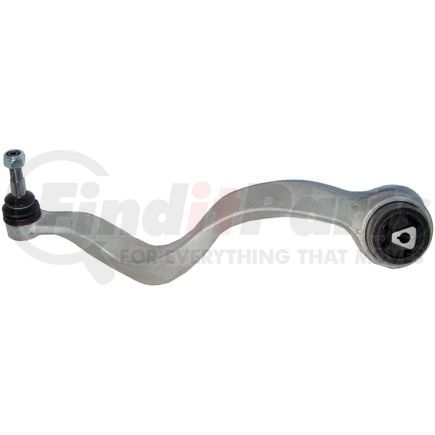

DELPHI TC1320 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1320 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.543 IN |
| Control Arm Maximum Width | 90.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 85.00 MM |
| Control Arm Maximum Length | 19.685 IN |
| Control Arm Maximum Length | 500.00 MM |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 3.346 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604251812 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1320 Cross References
| Brand | Part Number |
|---|---|
| BMW | 31 12 6 774 831, 3112 4026 453, 3112 4046 441, 3112 6750 519, 3112 6756 101, 3112 6760519, 3112 6765 993 |
| Beck/Arnley | 101-6088, 102-6088 |
| CORTECO | 49399144 |
| DORMAN | CB14123, CB14123PR |
| Dorman | 520-791 |
| MAS Industries | CB14123, CB14123PR |
| MEYLE | 3160500011/HD, 3160500105HD |
| MOOG Chassis Products | K620458, RK620458 |
| Mevotech | CMS10155, MS10155 |
| N/A | GS10155, 62262828 |
| TRW | JTC1067 |
| VAICO | V20-0535 |
DELPHI TC1320 Fits Vehicles
- BMW Alpina B7 (2007-2008)
- BMW 750i (2006-2008)
- BMW 750Li (2006-2008)
- BMW 760i (2004-2006)
- BMW 760Li (2003-2008)
- BMW 745Li (2002-2005)
- BMW 745i (2002-2005)
