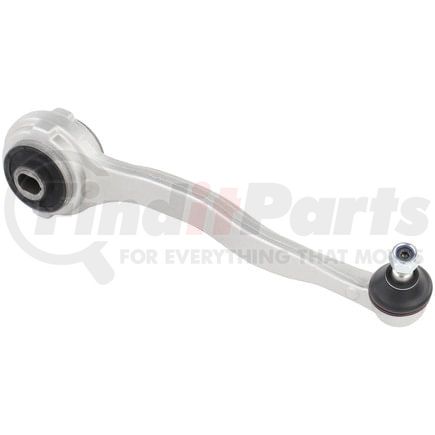

(888) 312-8812 Login SignupDELPHI TC1280 Control Arm and Ball Joint Assembly
Tap to view 23 more
MSRP: $117.83
$7599
Save $41.84
Limited availability at this price!
In Stock
Get it by Monday, Aug 3
DELPHI TC1280 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1280 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Forward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 4.370 IN |
| Control Arm Maximum Width | 111.00 MM |
| Control Arm Color | Gray |
| Ball Joint Stud Length | 2.913 IN |
| Ball Joint Stud Length | 74.00 MM |
| Control Arm Maximum Length | 16.457 IN |
| Control Arm Maximum Length | 418.00 MM |
| Mounting Hole Diameter | 0.638 IN |
| Mounting Hole Diameter | 16.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604251591 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1280 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6265, 102-6265 |
| CORTECO | 49398459, 49395494 |
| DORMAN | CB28264, CB28264PR, CB28188PR, CB28188 |
| Dorman | 520-954, 526-804 |
| MAS Industries | CB28264 |
| MEVOTECH | CMS101072 |
| MEYLE | 0160500090/HD, 0160500091/HD, 0160500032/HD, 0160500102, 0160500092HD, 0160500094/HD |
| MOOG | RK620087 |
| MOOG Chassis Products | CK620087, RK620087 |
| Mercedes-Benz | 203 330 02 11, 203 330 1711, 203 330 3611, 203 330 4011, 204 330 1711, 204 330 3411, 204 330 44 11, 204 330 58 11, A203 330 0211, A203 330 1711, A203 330 3611, A203 330 4011, A204 330 1711, A204 330 3411, A204 330 4411, A204 330 5811 |
| Mevotech | CMS10131, MS10131 |
| N/A | CMS101072, GS10131, 623.35003 |
| TRW | JTC969 |
| UNITY AUTOMOTIVE | SC-700049, 2C-CAB620086, CAB620087 |
| VAICO | V30 0769, V30 0770 |
DELPHI TC1280 Fits Vehicles
- Mercedes-Benz C250 (2010-2015)
- Mercedes-Benz E350 (2010-2014)
- Mercedes-Benz E550 (2010-2017)
- Mercedes-Benz E400 (2015-2017)
- Mercedes-Benz SLK250 (2012-2015)
- Mercedes-Benz SLK300 (2009-2011, 2016)
- Mercedes-Benz C63 AMG (2008-2015)
- Mercedes-Benz CLK550 (2007-2009)
- Mercedes-Benz CLK63 AMG (2007-2009)
- Mercedes-Benz SLK280 (2006-2008)
- Mercedes-Benz CLK350 (2006-2009)
- Mercedes-Benz C350 (2006-2015)
- Mercedes-Benz C280 (2006-2007)
- Mercedes-Benz SLK55 AMG (2005-2016)
- Mercedes-Benz SLK350 (2005-2016)
- Mercedes-Benz C55 AMG (2005-2006)
- Mercedes-Benz CLK55 AMG (2003-2006)
- Mercedes-Benz CLK500 (2003-2006)
- Mercedes-Benz CLK320 (2002-2005)
- Mercedes-Benz C320 (2001-2005)
- Mercedes-Benz C32 AMG (2002-2004)
- Mercedes-Benz C240 (2001-2005)
- Mercedes-Benz C230 (2002-2009)
