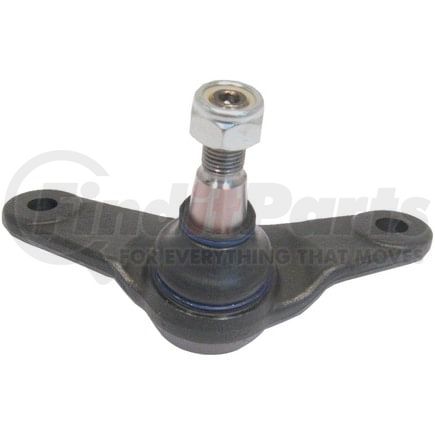

(888) 312-8812 Login SignupDELPHI TC1278 Ball Joint
Tap to view 2 more
MSRP: $32.18
$2699
Save $5.19
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 24
DELPHI TC1278 Part Description
DELPHI TC1278 Specifications
Product Attributes
| Position(s) | Front Inner Lower Right |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 1.850 IN |
| Maximum Outside Diameter | 47.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 80 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.870 IN |
| Height | 98.30 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.945 IN |
| Stud Thread Length | 24 MM |
| Wrench Size | 22mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 138.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.835 IN |
| Stud Tapered End 2 Diameter | 21.2 MM |
| Stud Tapered End 1 Diameter | 0.65 IN |
| Stud Tapered End 1 Diameter | 16.5 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 171.00 MM |
| Length | 6.730 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604251577 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1278 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5564 |
| Raybestos Chassis | 505-1357 |
| MOOG Chassis Products | K500111 |
| Mcquay-Norris | FA2287 |
| Mevotech | MS10508 |
| Deeza | MN-F201 |
| BMW | 31 12 6 753 992, 3110 6779 438 |
| MAS Industries | BJ29014 |
| TRW | JBJ747 |
| N/A | 31131489293, GS10508, BJ29014XL |
DELPHI TC1278 Fits Vehicles
- Mini Cooper (2002-2008)
