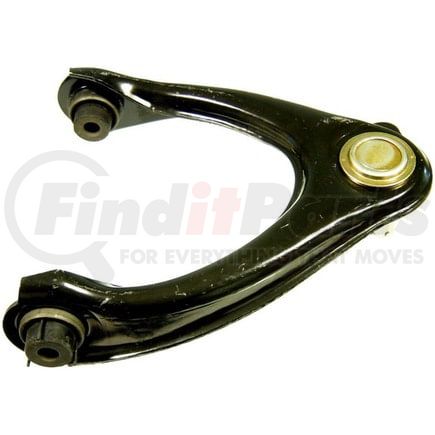

(888) 312-8812 Login SignupDELPHI TC1075 Control Arm and Ball Joint Assembly
Tap to view 2 more
$6399
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Jun 30
DELPHI TC1075 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1075 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 9.055 IN |
| Control Arm Maximum Width | 230.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 3.386 IN |
| Ball Joint Stud Length | 86.00 MM |
| Control Arm Maximum Length | 9.449 IN |
| Control Arm Maximum Length | 240.00 MM |
| Mounting Hole Diameter | 0.406 IN |
| Mounting Hole Diameter | 10.30 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604250594 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC1075 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4857, 102-4857, 101-4786 |
| CORTECO | 49400682 |
| DORMAN | CB90450, CB90450PR |
| Dorman | 520-670 |
| Honda | 51450-S01-023, 51450-S01-A02, 51450-S04-013, 51450-S04-023 |
| MAS Industries | CB581005PR, CB90450, CB90450PR |
| MOOG | CK90450, RK90450 |
| MOOG Chassis Products | CK90450, K621117, K90450, RK621117, RK90450, 101-4786, 102-4857 |
| Mevotech | CMK90450, MS20115 |
| N/A | GK90450, 51450S01003, CMS20113, 51450S01013 |
| TRW | JTC678 |
DELPHI TC1075 Fits Vehicles
- Acura EL (1997-2000)
- Honda Civic (1996-2000)
