(888) 312-8812 Login SignupDELPHI TA1643 Tie Rod End
Tap to view 2 more
$2349
Limited availability at this price!
In Stock
Get it by Friday, Feb 6

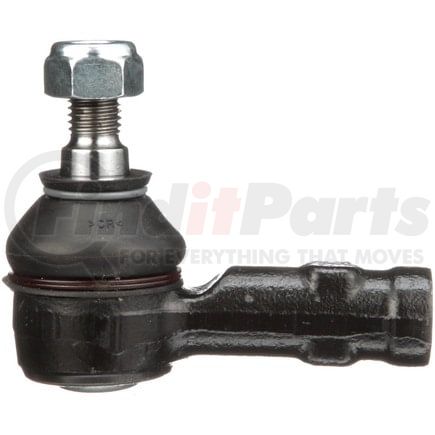

DELPHI TA1643 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA1643 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 37 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.472 IN |
| End 2 Thread Diameter | 12.00 MM |
| Height | 71.50 MM |
| Housing Material | Steel |
| Tube Diameter | 0.866 IN |
| Tube Diameter | 22.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.79 lb |
| Cone Outside Diameter | 16.20 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 2.835 IN |
| Length - Stud Center to End | 72.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 16.20 MM |
| Stud Length | 16.20 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.638 IN |
| Stud Length | 0.638 IN |
| Cone Outside Diameter | 0.638 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604245620 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA1643 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4919 |
| CORTECO | 49398920 |
| DORMAN | TO28005, TO28005XL, 534-548 |
| Deeza | MB-T201 |
| Import Direct | ER01013 |
| MAS Industries | T3317, TO28005 |
| MEYLE | 0160206330 |
| MOOG Chassis Products | ES3317 |
| Mercedes-Benz | 000 330 7435, 001 330 74 35, 001 330 77 35, A000 330 7435, A001 330 7435, A001 330 7735 |
| Mevotech | MES3317 |
| N/A | 534-548, GES3317, TO28005XL, 613.35016 |
| TRW | JTE244 |
| VAICO | V30-7202-1 |
DELPHI TA1643 Fits Vehicles
- Mercedes-Benz SLK320 (2001-2004)
- Mercedes-Benz SLK32 AMG (2002-2004)
- Mercedes-Benz SLK230 (1998-2004)
- Mercedes-Benz CLK55 AMG (2001-2002)
- Mercedes-Benz CLK430 (1999-2003)
- Mercedes-Benz CLK320 (1998-2003)
- Mercedes-Benz C43 AMG (1998-2000)
- Mercedes-Benz C36 AMG (1995-1997)
- Mercedes-Benz C280 (1994-2000)
- Mercedes-Benz C230 (1997-2000)
- Mercedes-Benz C220 (1994-1996)
