(888) 312-8812 Login SignupDELPHI TA1180 Tie Rod End
Tap to view 2 more
$1799
Limited availability at this price!
In Stock
Get it by Monday, Feb 16

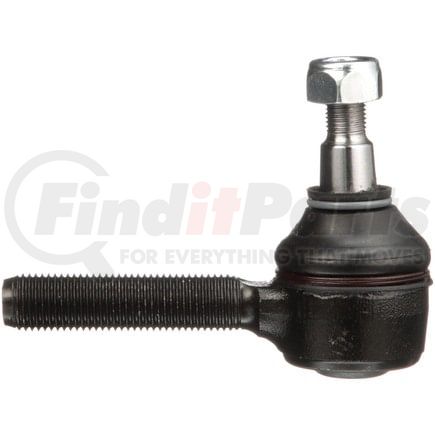

DELPHI TA1180 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA1180 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 42.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 72.30 MM |
| Housing Material | Steel |
| Tube Diameter | 0.551 IN |
| Tube Diameter | 14.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.75 lb |
| Cone Outside Diameter | 16.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.228 IN |
| Length - Stud Center to End | 82.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.394 IN |
| End 1 Thread Diameter | 10.00 MM |
| Shank Length | 16.00 MM |
| Stud Length | 16.00 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.630 IN |
| Stud Length | 0.630 IN |
| Cone Outside Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604244814 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA1180 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4050, 101-4051, 101-5803 |
| CORTECO | 49401322, 49400928 |
| DORMAN | T3143, T3143PR, 534-502 |
| Import Direct | ER01003 |
| MAS Industries | T3143 |
| MEYLE | 0160206129, 0160306309 |
| MOOG Chassis Products | ES3143R |
| Mcquay-Norris | ES3143 |
| Mercedes-Benz | 000 338 5110, 000 338 5410, 001 330 52 35, A000 338 5110, A000 338 5410, A001 330 5235 |
| Mevotech | MES3143R |
| N/A | T3143PR, 534-546, GES3143R, JTE1015, 3380710, 0001 330 52 35 |
| Raybestos Chassis | 401-1502 |
| TRW | ES3143, JTE397 |
| VAICO | V30-7163-1 |
DELPHI TA1180 Fits Vehicles
- Mercedes-Benz E320 (1994-1995)
- Mercedes-Benz E300 (1995)
- Mercedes-Benz 300TE (1988-1993)
- Mercedes-Benz 300TD (1983-1985, 1987)
- Mercedes-Benz 300E (1986-1993)
- Mercedes-Benz 300D (1983-1985, 1987, 1990-1993)
- Mercedes-Benz 300CE (1988-1993)
- Mercedes-Benz 300CD (1983-1985)
- Mercedes-Benz 240D (1983)
- Mercedes-Benz 260E (1987-1989)
