Name: CURT Manufacturing 60619 Double Lock EZr Gooseneck Hitch; 2-5/16in. Ball; 30K (Brackets Required)
SKU: 60619
Price: 364.99 USD
Availability: InStock

CURT MANUFACTURING part description

Product Description

Double Lock EZr Gooseneck Hitch; 2-5/16in. Ball; 30K (Brackets Required)

Features & Benefits

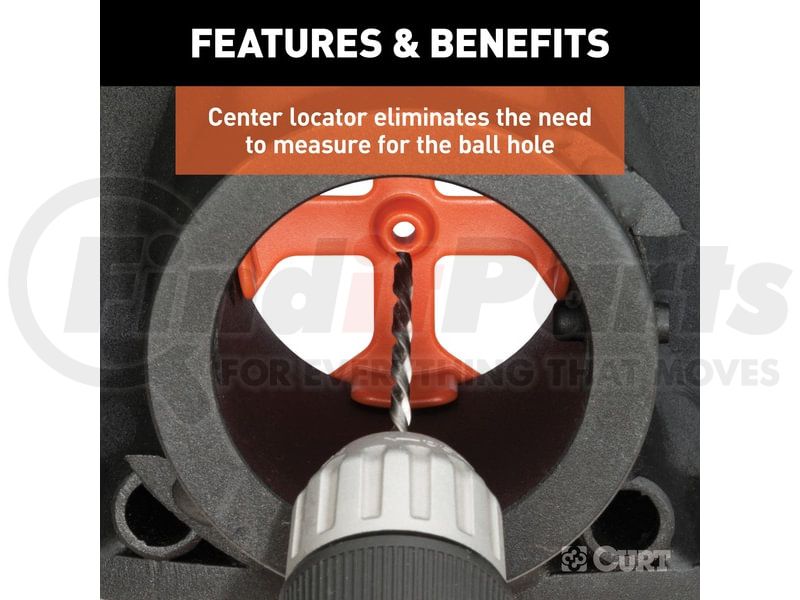

Center locator eliminates the need to measure where the ball hole should be

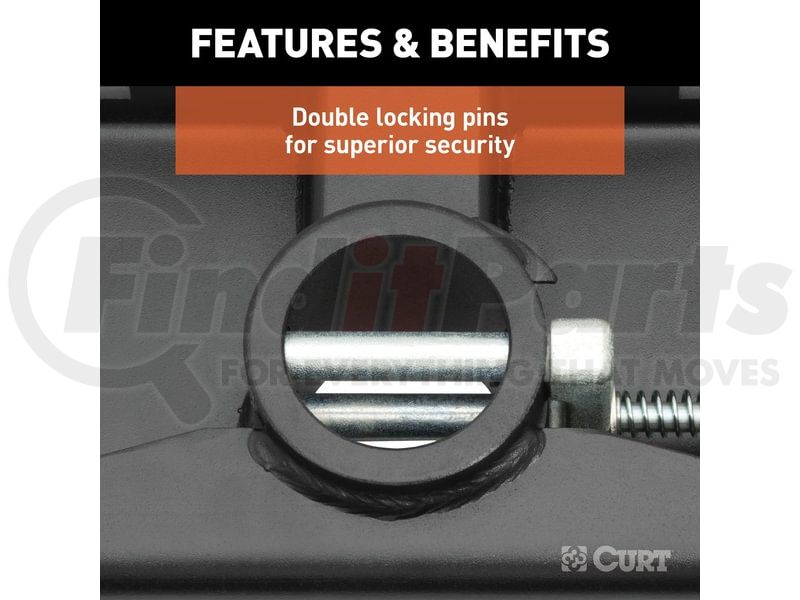

Double locking pins for superior trailer and trailer ball security
Flip-and-store ball keeps truck bed free of obstructions
Removable chrome-plated 2-5/16" trailer ball fits most gooseneck trailers
Slotted safety chain holes allow for proper alignment with truck bed rails
Chrome-plated trim ring provides a finished look
Heavy-duty 3/8" diameter handle for solid operation

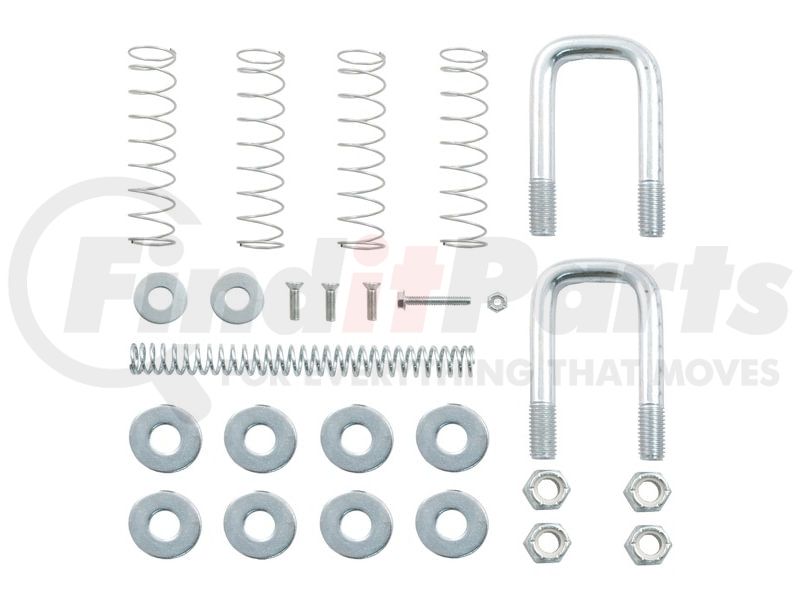

Includes strong 5/8" safety chain loops and grade-8 hardware
Protected by a durable A-coat finish
Tested for safety in accordance with SAE J2638
Limited lifetime warranty (one-year finish, one-year parts)
Slotted Safety Chain Holes Allow For Alignment w/Truck Bed Rails
Accepts Up To 30000 Lbs. Tw And 7500 Lbs. Vertical Load Limit
Removable Chrome-Plated 2 5/16 In. Trailer Ball Fits Most Trailer
Double Locking Pin For Superior Trailer And Trailer Ball Security
One-Person Installation Requires No Welding Or Truck Bed Removal
Patented Center Locator Eliminates Errors Caused When Drilling
Flip-And-Store Ball Keeps Truck Bed Free Of Obstruction
Heavy-Duty 3/8 In. Diameter Handle For Solid Operation
Rubber Hole Cover Helps Prevent Corrosion In Trailer Ball Hole
Incl. Strong 5/8 In. Safety Chain Loops And Grade 8 Hardware
Protected By A Highly Durable Carbide Powder Coat Finish

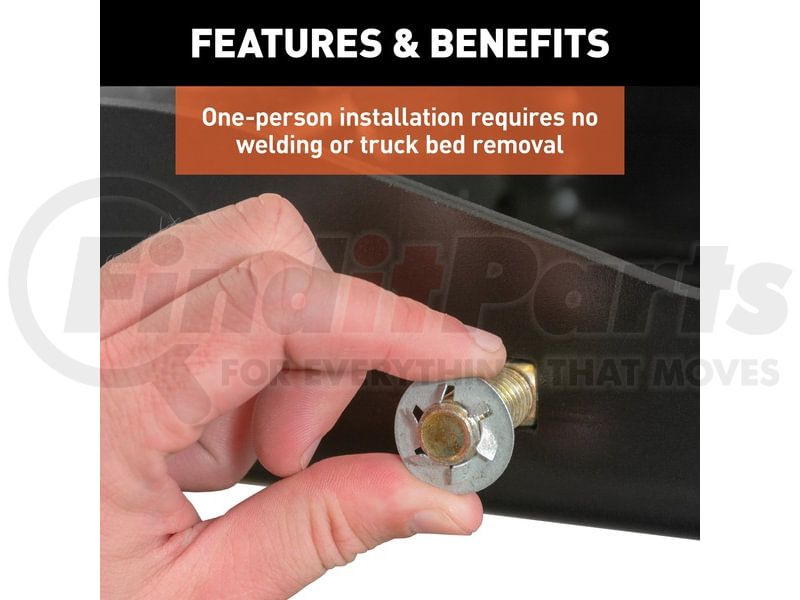

One-person installation requires no welding or truck bed removal

Product Attributes

BALL DIAMETER	2-5/16 IN
Finish	Carbide Black Powder Coat
Gross Trailer Weight	30000 lbs.
Vertical Load	7,500 LB
WARNING CA Proposition 65	No
Box Height In Inches - Xa	0
Box Length In Inches - Xa	0
Box Width In Inches - Xa	0
Class Id	0
Container Cases Qty - XA	0
Container Pallet Qty - XA	0
Container Unit Qty - XA	0
Container Volume Cubic Feet - XA	0.00000
Container Volume Cubic Meter - XA	0.00000
Container Weight KG - XA	0
Container Weight Lbs - XA	0
Finish - Xa	A-COAT
Gooseneck Hitch Type	Double Lock EZr
Gross Trailer Weight (gtw)	30,000 LB
Item Class - Xa	OBS
Item Height - Xa	4.000
Item Length - Xa	24.500
Item Width - Xa	7.750
Master Case Height Inches - XA	0.000
Master Case Inner Pack Qty - XA	0
Master Case ITF14	0
Master Case ITF14 - XA	0
Master Case Length Inches - XA	0.000
Master Case Qty - XA	0
Master Case Volume Cubic Feet - XA	0.00000
Master Case Weight Lbs - XA	0.000
Master Case Width Inches - XA	0.000
Material - Xa	Carbon Steel
Mount Type Description - Xa	Blank
Pallet Case Per - XA	0
Pallet Case Per Layer - XA	0
Pallet Cases Per - XA	0
Pallet Cases Per Layer - XA	0
Pallet Layer of Cases - XA	0
Pallet Qty - XA	35.000
Pallet Total Height Inches - XA	0.000
Pallet Total Weight Per - XA	0.000
Parcel Allowed - Xa	Yes
Product Weight - Xa	0.000
Prop 65 Label Text - XA	Blanks
Prop 65 Material - XA	Unknown
Prop 65 Reason - XA	Unknown
Prop 65 Warning Label Type - XA	Unknown
Prop 65 Warning Y/N - XA	NO
Rate Class - Xa	60.0
Retail Height - Xa	24.000
Retail Length - Xa	4.000
Retail Width - Xa	8.000
Sales Family Code - Xa	GOOSE
Sales Family Description - Xa	GOOSENECK
Sales Group Description - Xa	GOOSENECK HITCH
Shipping Weight - Xa	47.000
Side Application Type Description - Xa	Blank
Tariff 301 - Xa	Yes
Title	Double Lock EZr Gooseneck Hitch, 2-5/16" Ball, 30K (Brackets Required)
Truckload Cases Qty - XA	0
Truckload Pallets Qty - XA	0
Truckload Units Qty - XA	0
Truckload Volume Cubic Feet - XA	0.00000
Truckload Weight - XA	0
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8708998180
Harmonized Tariff Code (HTS)	8708998180
NAFTA Preference Criterion Code	B
Warranty Special	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Warranty Special UOM	TX
UPC	00612314606191
