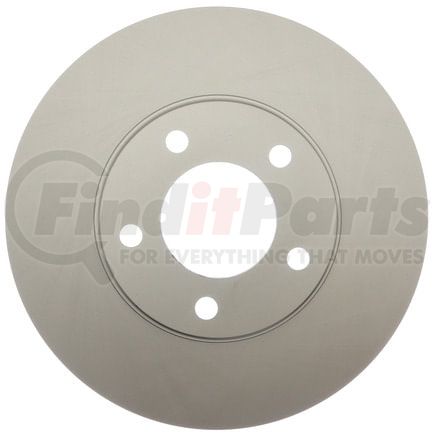

RAYBESTOS 76161FZN Raybestos Element3 Coated Brake Rotor

★★★★★ (0)
Raybestos 76161FZN Disc Brake Rotor Raybestos Element3 Coated Brake Rotor
RAYBESTOS

MSRP: $66.65

$63.99

Save $2.66

Limited availability at this price!

In Stock

Get it by Friday, Aug 7
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

RAYBESTOS 76161FZN Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Element3 Coated Brake Rotor

Application Summary

1995-1991 Dodge Caravan Front, 1995-1991 Dodge Grand Caravan Front, 1995-1991 Plymouth Voyager Front, 1995-1991 Plymouth Grand Voyager Front, 1995-1991 Chrysler Town & Country Front

Features & Benefits

  • Grey Fusion 4.0® Coating
  • Grey Fusion 4.0(R) Coating
  • Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
  • Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
  • RPT® Rust Prevention Technology
  • RPT(R) Rust Prevention Technology
  • RPT® Rust Prevention Technology for long lasting rust prevention.
  • RPT(R) Rust Prevention Technology for long lasting rust prevention.
  • Cooling Vanes
  • Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
  • OE Matched
  • OE Matched precision and performance.
  • Non-Directional Finish
  • A non-directional ground finish provides a product that is ready to install right out of the box.

RAYBESTOS 76161FZN Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.89 IN
Center Hole Diameter 73.4 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Directional or Non-Directional Brake Surface Non-Directional
Discard Thickness 0.882 IN
Discard Thickness 22.4 MM
Harmonize Code 8708.30.5030
Material Cast Iron
Mounting Bolt Hole Circle Diameter 4.5 IN
Mounting Bolt Hole Circle Diameter 114.3 MM
Mounting Bolt Hole Diameter 0.552 IN
Mounting Bolt Hole Diameter 14 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.945 IN
Nominal Thickness 24 MM
Outside Diameter 11.1 IN
Outside Diameter 281.95 MM
Overall Height 1.505 IN
Overall Height 38.25 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00887213228236

RAYBESTOS 76161FZN Cross References

BrandPart Number
ADVANCE AUTO PARTS141576, YH141576, YH141576C, YH141576P
AMERICAN REMANUFACTURED789-40021, 89-40021
AUTOPART INTERNATIONAL25079
AUTOSPECIALTYAR8721, AR8721E
AUTOXTRA8076161, AX5346
AUTOZONE5346, 5346B, 5346DG, 5346DL, DL5346
BENDIX141576
BOSCH16010154, RBR5346
BRAKE PRO4616161
BRAKEBEST16010154, 76161, 76161FZN, 76161R, 76161RGS, 81-125156, BD125156
BREMBO09.5801.10, 27004
Bridgestone7095141
CALIFORNIA DRUM & ROTOR125156
CENTRIC120.67021, 121.67021, 125.67021, 126.67021CSR, 126.67021SL, 126.67021SR, 127.67021L, 127.67021R, 320.67021, 320.67021F
CENTURY7053
CHRYSLER04423368, 04509340, 4423368, 4509340
CONTINENTAL-CONTITECHCW24715
Casting Numbers210509-C, 325164, 4653, 83461
Centric Parts120.67021, 121.67021, 125.67021, 126.67021CSR, 126.67021SL, 126.67021SR, 127.67021L, 127.67021R, 320.67021, 320.67021F
DELPHIRB344
DURA CORPBR5346, BR534602
DuraGoBR5346, BR5346-02
EIS BRAKESD17568
EUROROTOR5371
GREN601702
GUARDIAN52-125156
MIDASBR1786
MIGHTY DISTRIBUTING SYSTEM5346
MONROE BRAKESBD125156
NEWTEK AUTOMOTIVE5346
Newtek Automotive USA5346
PROMAX14-5346
QUALIS5346
QUALITEE INTERNATIONAL64-91-780
QUALITY BRAND5346
ROADMATES526163
ROCKHILL5346
SEARS17785
STANDARD ROTORS AND DRUMS5346
THE UNIVERSAL GROUP103460
TRUSTAR491780, R91780
TRWDF2678S
UAP5346
Ultra Brake5371
Universal103460
VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURINGX50643
WABCOPS5346
WABCO - ArchivedPS5346
WAGNER BRAKEBD125156
WINHERE442170, YH2170

RAYBESTOS 76161FZN Fits Vehicles

  • Plymouth Voyager (1991-1996)
  • Plymouth Grand Voyager (1991-1995)
  • Dodge Grand Caravan (1991-1996)
  • Dodge Caravan (1991-1996)
  • Chrysler Town & Country (1991-1996)
