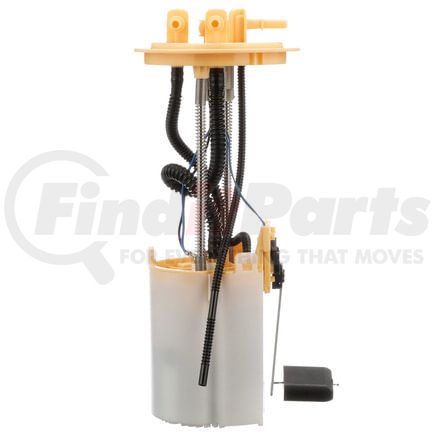

(888) 312-8812 Login SignupDELPHI FG1707 Fuel Pump Module Assembly
MSRP: $885.09
$87249
Save $12.60
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 4
DELPHI FG1707 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG1707 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| System Pressure | 58 psi |
| Vapor Pressure Sensor | No |
| Item Grade | Standard Replacement |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Diesel |
| Regulator Included | Yes |
| Maximum Pressure | 101 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 50 82 |
| Resistance Ohms Full | 870 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 10 68 |
| Average Flow Rating | 40 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 2 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 58 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| UPC | 00689604265819 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG1707 Cross References
| Brand | Part Number |
|---|---|
| AutoZone | FFG1707 |
| Bosch | 66168 |
| Carter | P76664M |
| Chrysler | 6801 3490AA, 6802 4008AA, 906 470 37 94 |
| Mercedes-Benz | 906 470 29 00, 906 470 37 94 |
| N/A | 4011511 |
| Precision Fuel | A33156 |
| Spectra Premium | SP7045M |
DELPHI FG1707 Fits Vehicles
- Mercedes-Benz Sprinter 3500XD (2018)
- Mercedes-Benz Sprinter 3500 (2010-2018)
- Mercedes-Benz Sprinter 2500 (2010-2018)
- Dodge Sprinter 2500 (2007-2009)
- Dodge Sprinter 3500 (2007-2009)
