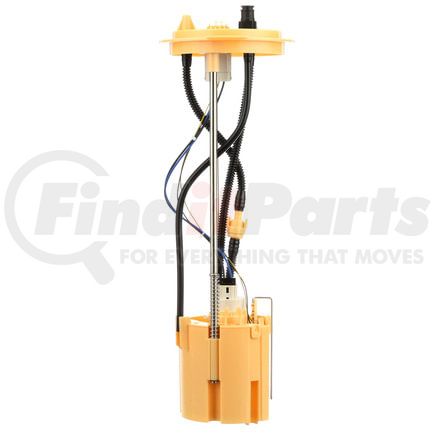

(888) 312-8812 Login SignupDELPHI FG1663 Fuel Pump Module Assembly
$47299
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
DELPHI FG1663 Part Description
DELPHI FG1663 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Vapor Pressure Sensor | No |
| System Pressure | 20 psi |
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Diesel |
| Regulator Included | No |
| Maximum Pressure | 29 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 990 82 |
| Resistance Ohms Full | 50 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 13 68 |
| Average Flow Rating | 50 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 20 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604266663 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG1663 Part Interchanges
| Brand | Part Number |
|---|---|
| Mopar | 4560227AB, 6808 4721AA |
| Spectra Premium | SP7238M |
| AutoZone | EFG1663 |
| Chrysler | 4560 227AB, 6814 1816AA, RL560227AB |
| Airtex | E7268M |
| N/A | P77240M, USEP7268M |
DELPHI FG1663 Fits Vehicles
- Ram 4500 (2011-2021)
- Ram 5500 (2011-2021)
- Ram 3500 (2011-2021)
